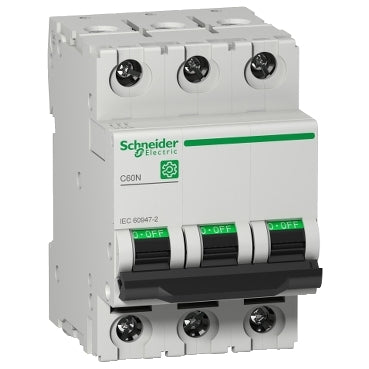

Schneider Electric Circuit Breaker - M9F11316

Schneider Electric Circuit Breaker - M9F11316
Image may vary slightly
See specifications for accurate information.
Reference: E366G
Brand: Schneider Electric
Mfr. Part: M9F11316

The schneider electric c60n series have mcb having 16 amp rated operating current and its used for the distribution application. This mcb have thermal magnetic trip unit technology with c curve code. This mcb have toggle control type with din rail mounting. Ip degree of protection is ip20 and ip40. Ambient air temperature for operation is -30 to 70 °c.

View all
Regular price
£39.82
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 30 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Downloads
Related products

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, rated 16A current, and C tripping curve. The rated short circuit breaking capacity is up to 10kA at 415VAC, conforming to the EN/IEC 60947-2 standard. This product complies with both the industrial standard EN/IEC 60898-1 and the residential standard EN/IEC 60947-2. It is designed to offer enhanced protection by preventing electrical threats to people and equipment. This product provides protection from short circuit, earth leakage, and overload. Its fast closing mechanism, overvoltage resistance, and high performance limitation enhance its service life.

This product is intended for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance of up to 10,000 cycles and a mechanical endurance of up to 20,000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. The pollution degree is 3, and the overvoltage category is IV. The product color is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm, and the weight is 0.36kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C, and the storage temperature is -40°C to 80°C.
