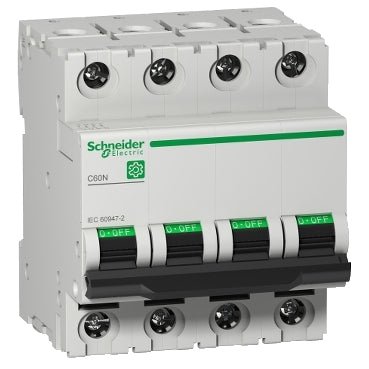

Schneider Electric Circuit Breaker - M9F11432
Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 32A, voltage type AC/DC, 4 poles (total), width in module units 4, secondary device possible, connectable conductor cross-section duck 1.5 - 35mm², 4 protected poles, nom. (measuring) voltage 415V.
- Regular price
- £62.79
Description
This Multi 9 C60N is a low voltage miniature circuit breaker (MCB). This product is a 4P circuit breaker with 4 protected poles. It has a nominal current of 32A and a C tripping characteristic. It can be mounted on a DIN-rail for a modular installation. As a circuit breaker, the breaking capacity according to IEC/EN 60947-2, 20kA at 230V AC and 10kA at 400V AC.
This power switch provides additional protection of the circuits against short circuit and overcurrent. It has an IP20 protection degree (according to IEC/EN 60529) on the terminals. The protection degree increases to IP40 when it is mounted in a modular housing.
The quick closing mechanism, the overvoltage resistance and the high performance limitation extend the lifespan of this component. The interrupt or position indication functions are provided remotely by adding electrical accessories. The green indication guarantees the physical opening of the contacts, so that the maintenance can be performed downstream.
