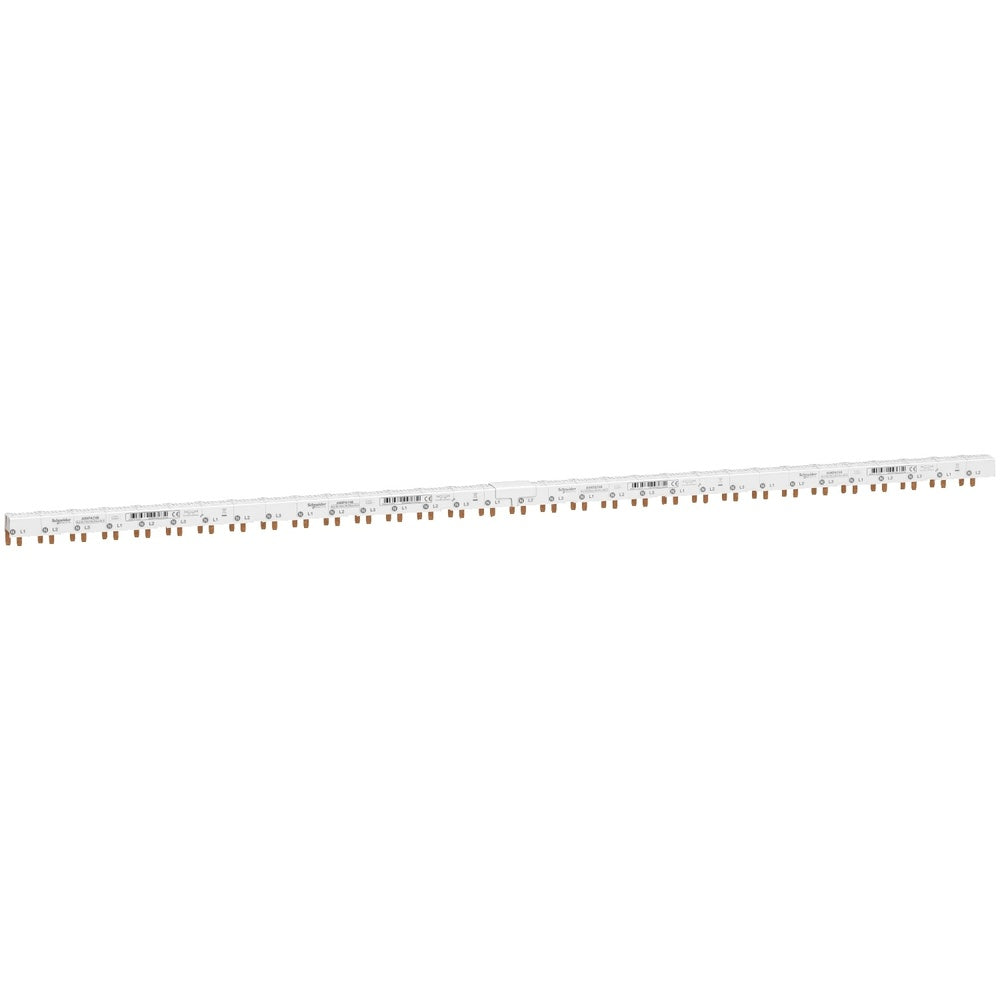

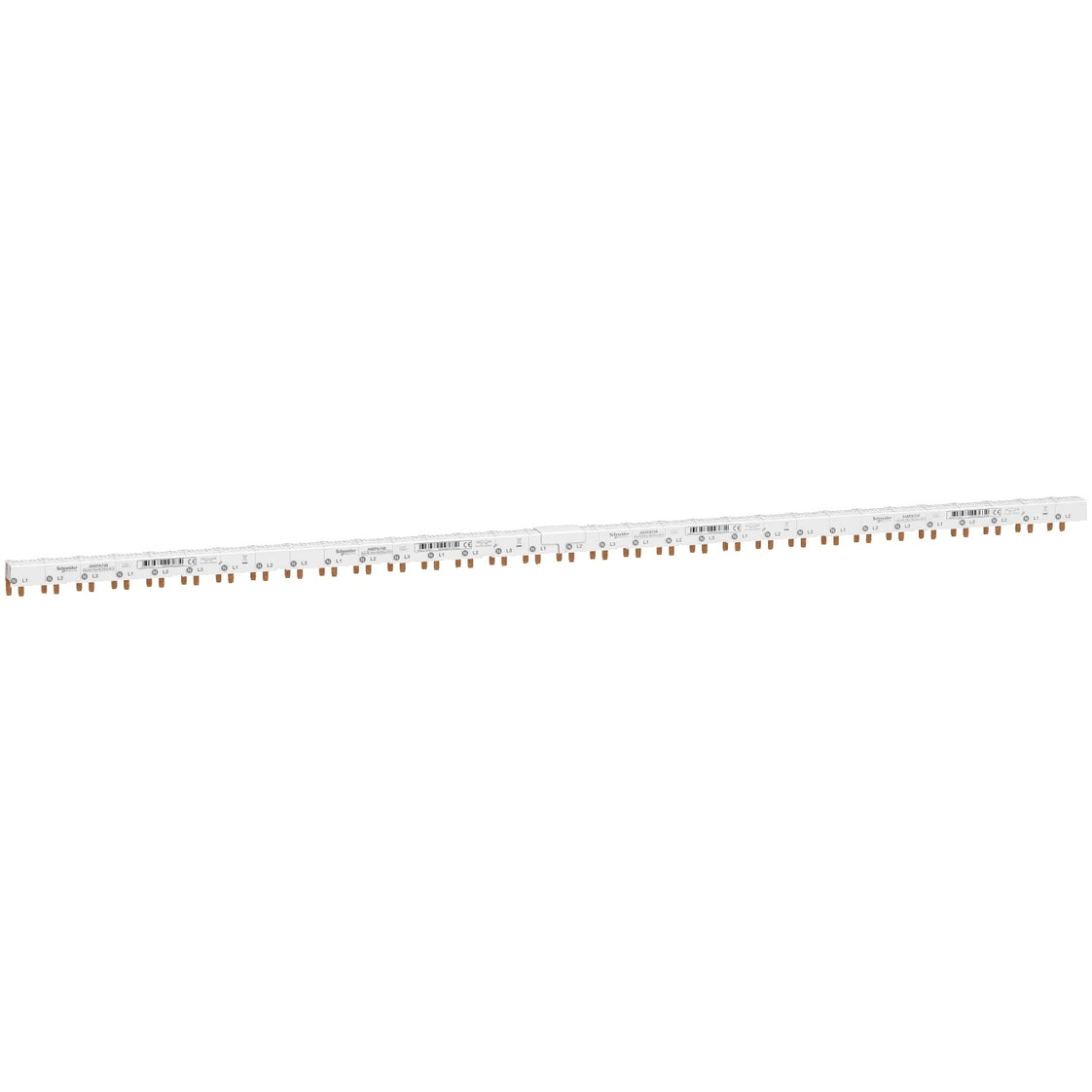

Schneider Electric Comb Rail - A9XPA748
The schneider electric comb busbar acti9 is 3l+n balanced with aux and 9 mm pitch with 48 modules. Number of ways 32 ways aux + n + l. Poles configuration for 1 way 1 x 1p + n. Connection pitch 9 mm between phase and neutral. Connector type tooth. Distance between way 27 mm. Marking n l1 n l2 n l3. Insulation insulated. Device presentation cuttable. Provided equipment end-pieces. Tooth covers. Rated operational current 80 a at 40 °c. Rated operational voltage 230 v ac ph/n. Rated insulation voltage 400 v ac conforming to iec 61439-1. Rated impulse withstand voltage 4 kv.
- Regular price
- £74.70
Description
The schneider electric comb busbar acti9 is 3l+n balanced with aux and 9 mm pitch with 48 modules. Number of ways 32 ways aux + n + l. Poles configuration for 1 way 1 x 1p + n. Connection pitch 9 mm between phase and neutral. Connector type tooth. Distance between way 27 mm. Marking n l1 n l2 n l3. Insulation insulated. Device presentation cuttable. Provided equipment end-pieces. Tooth covers. Rated operational current 80 a at 40 °c. Rated operational voltage 230 v ac ph/n. Rated insulation voltage 400 v ac conforming to iec 61439-1. Rated impulse withstand voltage 4 kv.
