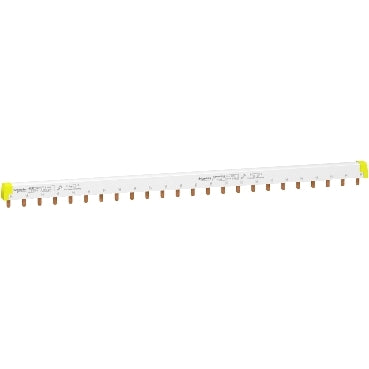

Schneider Electric Comb Rail - A9XPH324
Notice: This product will be discontinued in the future
Schneider electric 3-phase comb busbar, 415v ac, 18mm pitch - acti9 series - a9xph324. Connect switchgear easily with this user-friendly busbar from schneider electric. It's suitable for use in low-voltage switchboards and is designed to offer an optimal customer experience. Prefabricated connections cut down on assembly time and the unit can be installed in one simple operation. The busbar is fully insulated to reduce the risk of electrical shock and includes protective end caps for improved safety.
Notice: This product will be discontinued in the future
Description
This Acti 9 horizontal busbar with 18mm modules for Acti 9 iC60 or Acti 9 iK60 is cuttable. This product is intended for 3L installations. The type is L1-L2-L3 (Line). This set consists of 1 device. It is suitable for 8 devices (3P). The length is 430mm. The total number of 18mm modules is 24. The pin diameter is 16mm2. The type of electrical connection is PIN. The number of phases is 3 and the number of poles is 3. The Ie nominal operating current at 40°C is 100A. The Isc short-circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui nominal insulation voltage is 500VAC. The Ue nominal operating voltage is 415 V AC. The color of the device is white (RAL 9003). The pollution degree is 3. According to the IEC 60695-2-1 standard, the fire resistance at 960°C within 30 years is self-extinguishing. It complies with the IEC 60947-7-1 and IEC 61439-2 standards.
