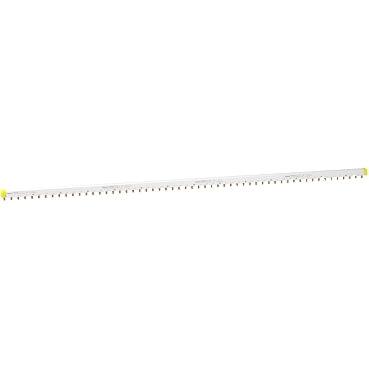

Schneider Electric Comb Rail - A9XPH457
Acti9 cutable comb busbars. Range of cutable comb busbars compatible with ic60, iid, isw-na, ik60, iid k and isw switch disconnector. Mounting mode: horizontal. Rated operational voltage: 415 v ac. Rated insulation voltage: 500 v ac.
- Regular price
- £71.47
Description
This text refers to an Acti 9 horizontal busbar with 18mm modules for Acti 9 iC60 or Acti 9 iK60 which can be cut. This product is designed for N+3L installations. The type is N-L1-L2-L3 (Neutral, Line). This set includes one device.
It is suitable for 14 devices (3P+N). The length is 1000mm. The total number of 18mm modules is 57. The pin diameter is 16mm2. The type of electrical connection is PIN. The number of phases is 3 and the number of poles is 4.
The Ie nominal operating current at 40°C is 100A. The Isc short-circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui nominal insulation voltage is 500VAC. The Ue nominal operating voltage is 415 V AC.
The color of the device is white (RAL 9003). The degree of pollution is 3. According to the IEC 60695-2-1 standard, the fire resistance at 960°C is self-extinguishing within 30 years.
It complies with the following standards:
- IEC 60947-7-1
- IEC 61439-2
