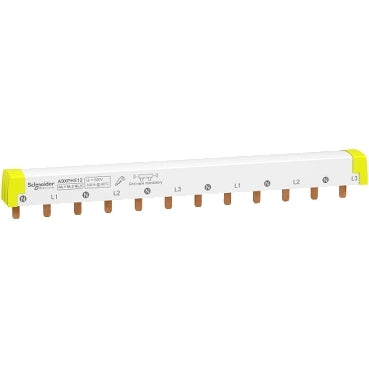

Schneider Electric Comb Rail - A9XPH512
This comb rail from Schneider Electric Merlin Gerin's Acti9 series is used for interconnecting the phase(s) and neutral. The insulated terminal rail features 2 poles and 12 modules. Furthermore, the comb rail has a cross section of 16mm² and a rated continuous current of 100A.
- Regular price
- £23.65
Description
This Acti 9 horizontal busbar with 18mm modules for Acti 9 iC60 or Acti 9 iK60 is adjustable. This product is intended for 3 (N+L) installations. The type is N-L1-N-L2-N-L3 (Neutral, Line). This is a set of 1 device. It is suitable for 6 devices (1P+N). The length is 220mm. The total number of 18mm modules is 12. The pin diameter is 16mm2. The type of electrical connection is PIN. The number of phases is 3 and the number of poles is 4.
The Ie nominal operating current at 40°C is 100A. The Isc short-circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui nominal insulation voltage is 500VAC. The Ue nominal operating voltage is 415 V AC. The color of the device is anthracite gray (RAL 7016). The degree of contamination is 3.
- According to the IEC 60695-2-1 standard, the fire resistance at 960°C is self-extinguishing within 30 years.
- It complies with the IEC 60947-7-1 and IEC 61439-2 standards.
