Schneider Electric Flush-Mounting Switch Modular - A9S65463
Acti9 isw switch disconnectors. Isw switch-disconnectors for control of opening and closing of circuits under load. Rating: 20 to 125 a. Visisafe for safe operation and maintenance work on circuit protection. Available options: state indication; sealable terminal shield, rotary handle, padlocking device.
- Regular price
- £47.18
Description

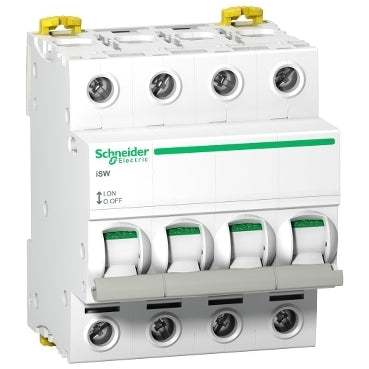

This Acti 9 iSW is a modular and reliable load switch. This product is a 4P load switch with a nominal current of 63A and an operating voltage of 415V AC.
The electrical durability is guaranteed up to 15,000 cycles, and the mechanical durability even up to 20,000 cycles.
The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C.
The degree of protection is IP20 and becomes IP40 when this product is placed in a casing. It is easy to mount on a DIN rail.
The width in the number of 9mm modules is 8. The dimensions are 85mm (H) x 72mm (W) x 73mm (D).
This load switch is used for control and isolation. This product complies with EN/IEC 60947-3.
