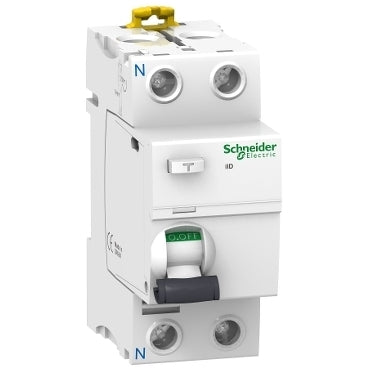

Schneider Electric Ground Fault Circuit Interrupter - A9R01225
The Schneider Electric Acti 9 iID ground fault circuit interrupter can be installed quickly and easily. The green strip on the rocker switch ensures that contacts are physically open and work can be performed on the downstream circuit in complete safety. In addition, the red indicator allows immediate identification of a shutdown due to an error. Using the test button, the proper functioning of the device can be verified. Schneider Electric Acti 9 iID RCCBs are available in different variants.
- Regular price
- £123.90
Description
This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, and a sensitivity of 30mA with an A type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnecting electrical circuits in the case of an earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on the front face.
This product also has a VisiSafe window with a green strip on the toggle, indicating the full opening of the poles allowing for downstream maintenance. This product is compliant with the EN/IEC 61008-1 standard. The rated breaking and making short circuit capacity is 1500A. The conditional rated short circuit current is 10kA. The mechanical endurance can reach up to 20000 cycles and electrical endurance goes up to 15000 cycles.
The operational voltage is 220VAC to 240VAC. The rated insulation voltage is 500VAC. The rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003).
The dimensions are 36mm (width) x 91mm (height) x 73.5mm (depth). The weight is 0.21kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in a modular enclosure. The operating temperature ranges from -25°C to 60°C. The storage temperature ranges from -40°C to 85°C.
