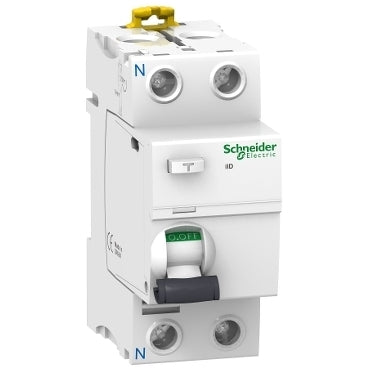

Schneider Electric Ground Fault Circuit Interrupter - A9R04240
The Schneider Electric Acti 9 iID ground fault circuit interrupter can be installed quickly and easily. The green strip on the rocker switch ensures that contacts are physically open and work can be performed on the downstream circuit in complete safety. In addition, the red indicator allows immediate identification of a shutdown due to an error. Using the test button, the proper functioning of the device can be verified. Schneider Electric Acti 9 iID RCCBs are available in different variants.
- Regular price
- £119.01
Description
This Acti9 iID is a reliable, modular residual current circuit breaker (RCCB). It's a 2P circuit breaker with a rated current of 40A and a sensitivity of 300mA, belonging to the A type protection class. This product provides protection against electrical shock by indirect contact and fire hazards. It carries out the disconnection of electrical circuits in case of an earth fault. Its unique Visitrip indicator reduces intervention time by identifying the faulty device with a mechanical indicator on the front face. This product also features a VisiSafe window, with a green strip on the toggle indicating full opening of the poles for downstream maintenance.
This product complies with the EN/IEC 61008-1 standard. The rated breaking and making short circuit capacity (Im/IΔm) is 1500A. The conditional rated short circuit current (Inc/IΔc) is 10kA. The mechanical endurance can reach up to 20000 cycles, and the electrical endurance can reach up to 15000 cycles. The operational voltage (Ue) is 220VAC to 240VAC. The rated insulation voltage (Ui) is 500VAC. The rated impulse withstand voltage (Uimp) is 6kV. The frequency can be either 50Hz or 60Hz. It can be mounted on a DIN rail.
The width in 9mm pitches is 4. The product is white (RAL9003). The dimensions are 36mm (W) x 91mm (H) x 73.5mm (D). The weight is 0.21kg.
It offers an IP20 degree of protection (as per IEC/EN 60529 standard) which becomes IP40 when placed in a modular enclosure. The operating temperature ranges from -25°C to 60°C, while the storage temperature ranges from -40°C to 85°C.
