Schneider Electric Ground Fault Circuit Interrupter - A9R05463
Notice: This product will be discontinued in the future
The Schneider Electric Acti 9 iID ground fault circuit interrupter can be installed quickly and easily. The green strip on the rocker switch ensures that contacts are physically open and work can be performed on the downstream circuit in complete safety. In addition, the red indicator allows immediate identification of a shutdown due to an error. Using the test button, the proper functioning of the device can be verified. Schneider Electric Acti 9 iID RCCBs are available in different variants.
Notice: This product will be discontinued in the future
Description

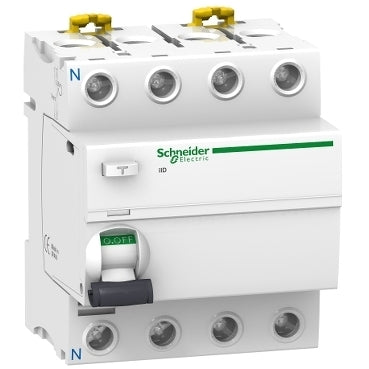

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with an In-rated current of 63A, A type protection class, and a 300mA earth leakage sensitivity. This product protects against electrical shock by indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of an earth fault.
Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on the front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance. This product complies with the EN/IEC 61008-1 standard.
- The Im/IΔm rated breaking and making short circuit capacity is 1500A.
- The Inc/IΔc conditional rated short circuit current is 10kA.
- The electrical endurance is up to 15000 cycles.
- The mechanical endurance is up to 20000 cycles.
- The Ue operational voltage is 380VAC to 415VAC.
- The Ui rated insulation voltage is 500VAC.
- The Uimp rated impulse withstand voltage is 6kV.
- The frequency is 50Hz or 60Hz.
- It is DIN rail mountable.
- The width in 9mm pitches is 8.
The product color is white (RAL9003). The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 0.37kg. It has an IP20 degree of protection. It becomes IP40 once in a modular enclosure according to the IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
