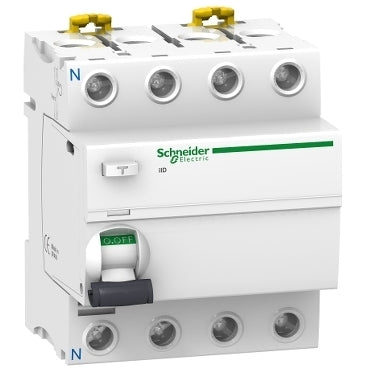

Schneider Electric Ground Fault Circuit Interrupter - A9R26440
The Schneider Electric Acti 9 iID ground fault circuit interrupter can be installed quickly and easily. The green strip on the rocker switch ensures that contacts are physically open and work can be performed on the downstream circuit in complete safety. In addition, the red indicator allows immediate identification of a shutdown due to an error. Using the test button, the proper functioning of the device can be verified. Schneider Electric Acti 9 iID RCCBs are available in different variants.
- Regular price
- £138.29
Description
This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 40A In rated current, 500mA earth leakage sensitivity, and A type protection class. This product protects against electrical shock by indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of an earth fault.
Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on the front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance. This product is compliant with EN/IEC 61008-1 standard.
- The rated breaking and making short circuit capacity is 1500A.
- The conditional rated short circuit current is 10kA.
- It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles.
- The operational voltage is 380VAC to 415VAC.
- The rated insulation voltage is 500VAC.
- The rated impulse withstand voltage is 6kV.
- The frequency is 50Hz or 60Hz.
- It is DIN rail mountable.
- The width in 9mm pitches is 8.
The product color is white (RAL9003). The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 0.37kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
