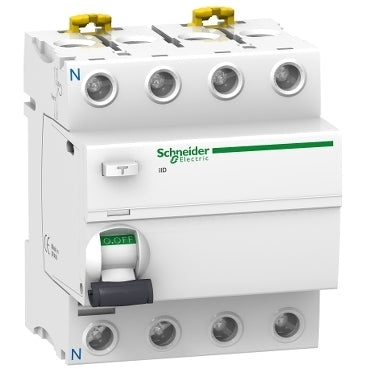

Schneider Electric Ground Fault Circuit Interrupter - A9R31463
The Schneider Electric Acti 9 iID ground fault circuit interrupter can be installed quickly and easily. The green strip on the rocker switch ensures that contacts are physically open and work can be performed on the downstream circuit in complete safety. In addition, the red indicator allows immediate identification of a shutdown due to an error. Using the test button, the proper functioning of the device can be verified. Schneider Electric Acti 9 iID RCCBs are available in different variants.
- Regular price
- £286.70
Description
This Acti9 iID is a reliable and modular residual current circuit breaker (RCCB). It's a 4P circuit breaker with a 63A In rated current, 30mA earth leakage sensitivity and A-SI type protection class. This product provides protection against electrical shocks by direct or indirect contact and fire hazards. It disconnects electrical circuits in case of an earth fault. Its unique Visitrip indicator reduces intervention time by displaying the faulty device with a mechanical indicator on the front face.
This product also features a VisiSafe window with a green strip on the toggle, indicating full opening of the poles for downstream maintenance. This product complies with the EN/IEC 61008-1 standard.
- The rated breaking and making short circuit capacity (Im/IΔm) is 1500A
- The conditional rated short circuit current (Inc/IΔc) is 10kA
- Its electrical endurance reaches up to 15000 cycles
- Mechanical endurance up to 20000 cycles
- The operational voltage Ue ranges from 380VAC to 415VAC
- The rated insulation voltage Ui is 500VAC
- The rated impulse withstand voltage Uimp is 6kV
- The frequency is either 50Hz or 60Hz
It is suitable for DIN rail mounting. The width in 9mm pitches is 8. The product is white (RAL9003) in color. Its dimensions are 72mm (W) x 91mm (H) x 73.5mm (D) and it weighs 0.37kg. In compliance with the IEC 60529 standard, the degree of protection is IP20 and IP40 in an enclosure.
- The operating temperature ranges from -25°C to 60°C
- The storage temperature ranges from -40°C to 85°C
