Schneider Electric Ground Fault Circuit Interrupter - A9R35463
Schneider Electric earth leakage circuit breaker 3, type leakage current A, selective protection, nom. (measuring) current 63A, DIN rail, rated fault current 300A, nom. (measuring) voltage 400V, short-circuit resistance (Icw) 1.5kA, momentary delay type, connectable conductor cross-section duck 1 - 35mm², width in module units 4.
- Regular price
- £285.66
Description

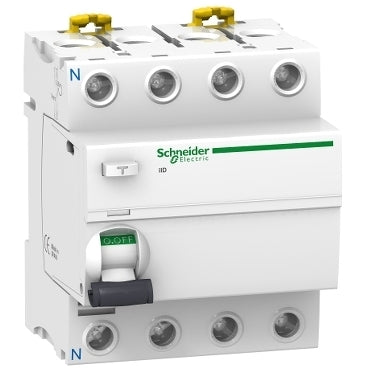

This Acti 9 iID is a modular and reliable Residual Current Circuit Breaker (RCCB). This product is a 4P RCCB with a rated current of 63A and an operating voltage of 380V AC to 415V AC. The making and breaking capacity is 1500A (Im/IΔm).
The electrical endurance is guaranteed up to 15,000 cycles, and the mechanical endurance even up to 20,000 cycles. The degree of protection is IP20 and becomes IP40 when this product is placed in an enclosure. It is easy to mount on a DIN rail. The device's location in the system is the outgoing position.
The earth leakage protection class is of the type A-SI. This product complies with EN/IEC 61008-1.
