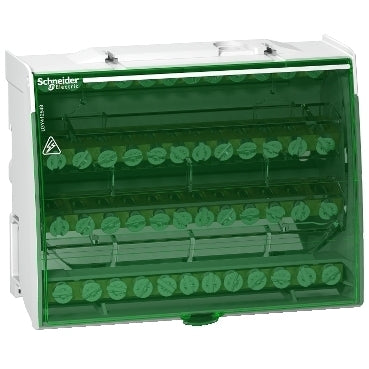

Schneider Electric INS Distribution Terminal Block - LGY412548
Schneider Electric INS distribution terminal block, conductor cross-section 35mm², 4 poles.
- Regular price
- £35.96
Description
The Linergy DS distribution blocks can be mounted on a standard DIN rail or on a mounting plate. This product is intended for 4P installations. The number of poles is 1. The total connection capacity is 48 holes (4x12). The Ie nominal operational current is 125A. The nominal peak resistance current is Ipk/60ms is 18kA, Ipk/6ms is 26kA. The Icw short duration current according to IEC/EN 60947-7-1 is 4.2 kA ms/1s. The width in the number of 9mm modules is 14.
The connection capacity is:
- 1 x 9mm diameter
- 7 x 0.5mm diameter
- 4 x 6.5mm diameter
The nominal insulation voltage (Ui) is 500V AC and the nominal impulse voltage (Uimp) is 8kV. The Ue nominal operating voltage is 230V AC (Ph/N) or 440V AC (Ph/Ph). The operating frequency is 50Hz or 60Hz. The pollution degree is 3. The overvoltage category is III. According to the IEC/EN 60947-1 standard, the dielectric resistance is 2500VAC.
The dimensions are 100mm (H) x 126mm (W) x 50.5mm (D). The weight is 390g. The operating temperature is -25 degrees Celsius to +55 degrees Celsius. It complies with the IEC/EN 60947-7-1 and IEC/EN 61439-1 & 2 standards.
