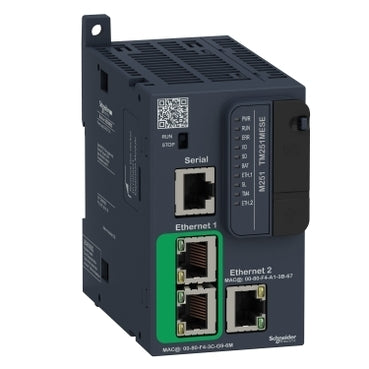

Schneider Electric M2 PLC Base Unit - TM251MESE
Schneider electric modicon m25 logic controller range. Forming part of the m25 logic controllers range of products, the m25 modicon range has been specifically designed for industrial machines. These controllers bring a consistent and scalable response to achieving flexibility, productivity, digitalization and performance. Features & benefits. Innovative, high performance. Predominantly used in the field of modular machines and distributes architectures. Compact dimensions. Suitable for wall mount and floor standing control system enclosures.
- Regular price
- £405.46
Description
This product is a part of the Modicon M251 range, which offers logic controllers for modular and distributed architectures. This logic controller provides 7 local and 14 remote I/O expansion modules. The Modicon logic controller has a rated supply voltage of 24V DC, an inrush current of 50A, and a power consumption ranging from 32.6W to 40.4W.
Boost your machine's performance with powerful data transfer through the SD Card, embedded web and FTP server, and more. The integrated connections include a USB port with a mini B USB 2.0 connector, a non-isolated serial link serial with an RJ45 connector and RS232/RS485 interface, a dual-port Ethernet with an RJ45 connector, and an Ethernet 2 port with an RJ45 connector.
This Modicon M251 controller comes with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for user program backup, and an SD card memory capacity of 32GB. The product is IP20 rated.
The dimensions are 54mm in width, 95mm in depth, and 90mm in height. It weighs 0.22kg.
The Modicon M251 logic controllers are designed for high-performance compact machines that incorporate speed and position control functions. This product is certified by CE, CSA, and CULus.
- It meets standards like ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604, and UL 508.
- The product supports DIN rail mounting.
Achieve benchmark performance and increase profitability with the Modicon M251 through intuitive machine programming with SoMachine, ready-to-use applications, and function blocks. Increase flexibility and save space in your cabinet with the Modicon M251 logic controller for modular and distributed architectures.
