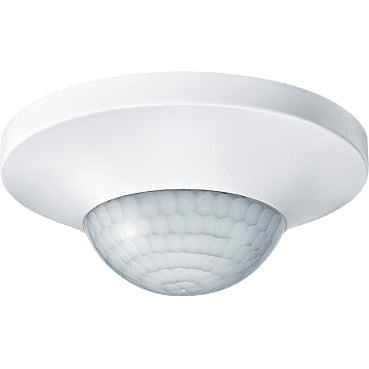

Schneider Electric Merten ARGUS Motion Switch (Complete) - MTN5510-1119
Notice: This product will be discontinued in the future
Schneider Electric M ARGUS motion switch (complete), white, diameter 116mm,, type of presence detector, degree of protection (IP) IP20, optimal mounting height 2.5m, suitable for ceiling mounting, detector type passive infrared, max. Range frontal 7m, remote operation.
Notice: This product will be discontinued in the future
Description
This product is a presence detector designed for indoor ceiling mounting. The sensor module can detect moving heat sources, such as people, within a customizable detection area. This action triggers a staircase timer. The product is compatible with ohmic, inductive, and capacitive loads including incandescent lamps, energy saving lamps, LV halogen lighting with a standard transformer, electronic transformers, and fluorescent lamps.
The sensor module features a light sensor with an adjustable brightness threshold, meaning the lighting will only turn on if a certain level of brightness is not achieved. With sufficient daylight, the presence function of the sensor module allows the lighting to be turned off even when a person is in the room. The product can be mounted in a size 60 built-in box or in the optional surface-mounted housing. It is equipped with both a claw and screw fastening, as well as screw clamps.
The function of this presence sensor is to switch an output. External activation is enabled through a PL input (sensor module on the insert of the central (Slave), side controller Plus). The product also features a brightness-dependent staircase lighting function.
Specifications are as follows:
- Nominal voltage: AC 220/230 V, 50/60 Hz.
- Nominal current: maximum 10 AX, cos Phi 0.6.
- Output: 1x make contact.
- Maximum switching capacity per channel: Incandescent lamps: 2200 W. HV halogen lamps: 2000 W. LV halogen lamps with wound transformer: 500 VA. Electronic transformers: 1050 W. Capacitive load: 10 A, 140 µF. Energy-saving lamps: 100 VA. Motor load: 1000 VA.
- Neutral conductor: required (3-wire system).
- Wire range: maximum 2x2.5 mm².
- Angle of detection: 360°.
- Number of levels: 6.
- Number of zones: 136.
- Number of motion sensors: 4.
- Recommended installation height: 2.5 m.
- Range: a radius of maximum 7 m (at a mounting height of 2.50 m).
- Sensitivity: continuously adjustable.
- Brightness threshold: continuously adjustable between approx. 10 and 1000 lux.
- Overshoot time: Channel 1: continuously adjustable between approx. 10 s and approx. 30 min.
- Color: polar white.
