Schneider Electric Preventa Limit Switch M Locking Function - XCSTE7311

Schneider Electric Preventa Limit Switch M Locking Function - XCSTE7311
Schneider Electric Preventa Limit Switch M Locking Function - XCSTE7311

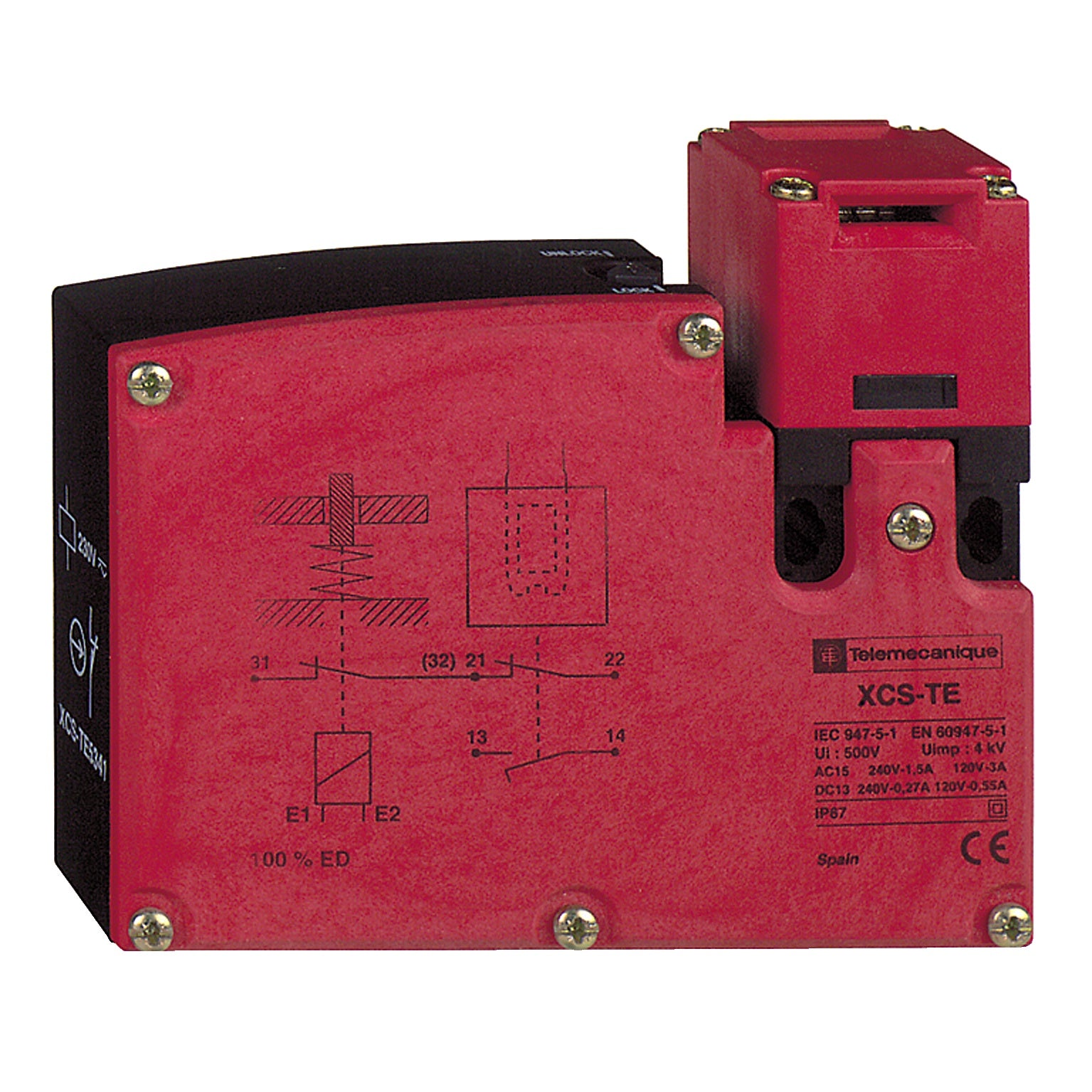

Image may vary slightly
See specifications for accurate information.
Reference: E2H2J
Brand: Schneider Electric
Mfr. Part: XCSTE7311

Schneider Electric Preventa XCS limit switch m interlock function, suitable for safety function, with status indication, housing plastic, 2 break contacts, type of interlock resting current principle, protection rating (IP) IP67K, closing force 500N.

View all
£176.46
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 11 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Schneider Electric Preventa XCS limit switch m interlock function, suitable for safety function, with status indication, housing plastic, 2 break contacts, type of interlock resting current principle, protection rating (IP) IP67K, closing force 500N.

Downloads

Specifications

Status indication
Yes
Suitable for safety functions
Yes
Guard locking force (N)
500
With escape release
No
Type of guard locking
Quiescent current principle
With auxiliary release
No
Rated control supply voltage Us magnet drive at AC 50 Hz (V)
24 V to 24 V
Rated control supply voltage Us magnet drive at AC 60 Hz (V)
24 V to 24 V
Rated control supply voltage Us magnet drive at DC (V)
24 V to 24 V
Width sensor (mm)
110
Height of sensor (mm)
94
Length of sensor (mm)
33
Number of safety auxiliary contacts
0
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
Type of switching contact
Slow-action switch
Rated operation current Ie at AC-15, 125 V (A)
3
Rated operation current Ie at AC-15, 230 V (A)
1.5
Rated operation current Ie at DC-13, 24 V (A)
0
Rated operation current Ie at DC-13, 125 V (A)
0.55
Rated operation current Ie at DC-13, 230 V (A)
0.27
Construction type housing
Cuboid
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Coating housing
Other
Type of interface
None
Type of interface for safety communication
None
Electrical connection
Type of electric connection.
Cable entry PG
Explosion safety gas
None
Explosion safety dust
None
Ambient temperature during operating (°C)
-25 °C to 60 °C
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67K
