42mm Bellows CR Black Vacuum Suction Cup Stroke 9mm

42mm Bellows CR Black Vacuum Suction Cup Stroke 9mm
42mm Bellows CR Black Vacuum Suction Cup Stroke 9mm
42mm Bellows CR Black Vacuum Suction Cup Stroke 9mm
42mm Bellows CR Black Vacuum Suction Cup Stroke 9mm
42mm Bellows CR Black Vacuum Suction Cup Stroke 9mm
42mm Bellows CR Black Vacuum Suction Cup Stroke 9mm
42mm Bellows CR Black Vacuum Suction Cup Stroke 9mm
42mm Bellows CR Black Vacuum Suction Cup Stroke 9mm
Image may vary slightly
See specifications for accurate information.
Reference: SCL-B-42-9-C
Brand: Tameson

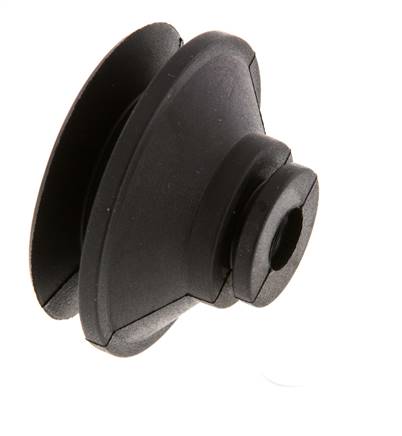

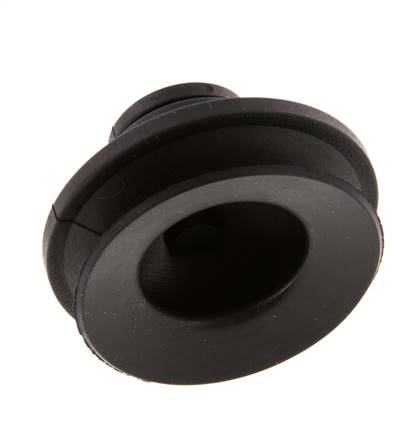

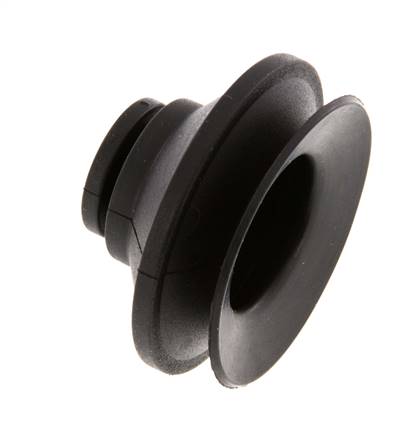

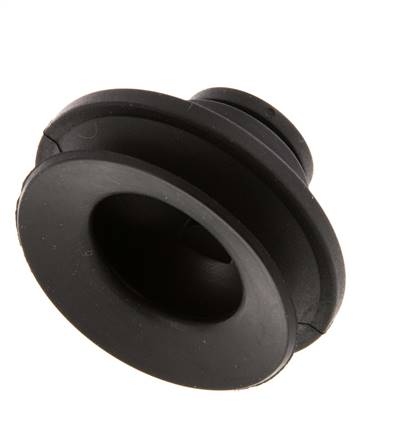

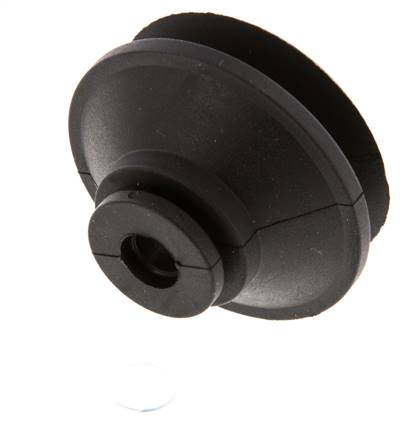

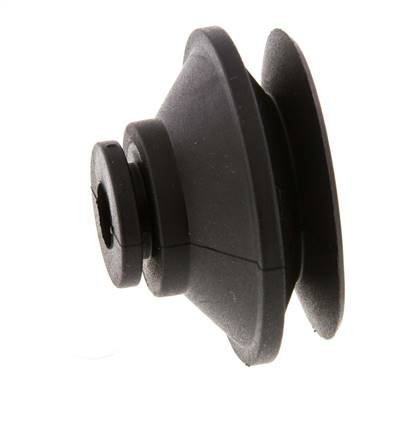

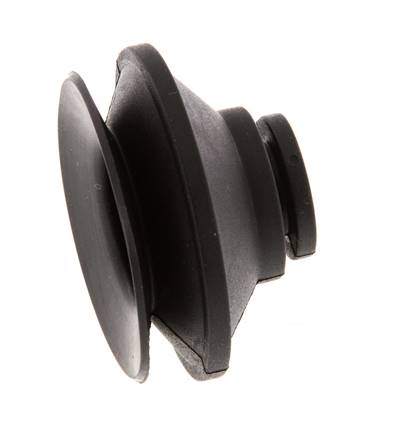

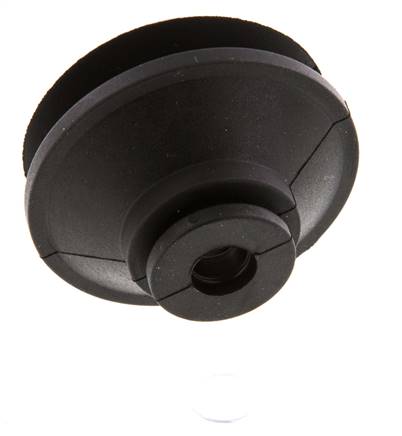

This bellows suction cup can be used to a lift and move curved workpieces. The diameter is 42 mm and it is made from chloroprene rubber (CR). Suitable for a temperature range of -40 °C to 110 °C (-40 °F to 230 °F). The color is black.

The fitting is not included, but it is compatible with fitting model FL1-F-A-018G-5P2.

View all
Regular price
£7.35
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 25 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

The vacuum suction cup is used in vacuum systems for pick-and-place operations. The main selection criteria for suction cups are material, shape and diameter. This bellows type vacuum cup can be used to lift materials witha curved, angled surface or surfaces with varying heights. The suction cup is made from black chloroprene rubber (CR) and is recommended for universal use. Please see our datasheet with material specifications.

The diameter of the suction cup is 42 mm and the stroke (cup deflection) is 9 mm. The shore hardness is 45-55 Type A. The suction cup is suitable for temperatures between -40 °C and 110 °C (-40 °F and 230 °F).

Pros:

  • Can be used curved, angled or with a varied height surface
  • For universal use
  • Compatible with PIAB suction grippers

Cons:

  • The evacuation time for a bellows suction cup is longer than for a flat suction cup
  • The fitting is not included, but it is compatible with fitting model FL1-F-A-018G-5P2

SCL series

The SCL series vacuum suction cups come with round and oval shapes, both possible as flat or bellows cups. They are available in different materials, such as NBR, Silicone, SBR, Polyurethane (PUR), Chloroprene Rubber (CR) or NR (natural rubber). The large choice of materials makes them suitable for a wide range of different applications. The diameter of round suction cup ranges from 5 to 225 mm. The oval suction cups are available in 15x5 and 100x35 mm. They have different strokes varying from 0.5 to 30 mm (the bellows suction cups have higher strokes). The suction cups can be either with a pre-installed fitting or without fittings. They are available with additional features like support ribs, suction strainer, ear clamps, robust lips, thin lips and double safety lips.
