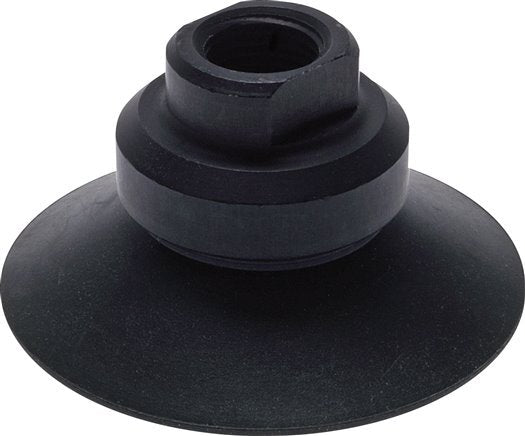

28mm Flat CR Black Vacuum Suction Cup M5 or G 1/8 inch Female/male Stroke 1mm Suction Strainer and Support Ribs

28mm Flat CR Black Vacuum Suction Cup M5 or G 1/8 inch Female/male Stroke 1mm Suction Strainer and Support Ribs
Image may vary slightly
See specifications for accurate information.
Reference: SCL-F-28-1-C-MF-M5-018-S
Brand: Tameson

This flat suction cup can be used to a lift and move flat workpieces. The diameter is 28 mm and it is made from chloroprene rubber (CR). The connection port is M5 and G 1/8 inch and the nominal diameter is 4.3 mm. Suitable for a temperature range of -40 °C to 110 °C (-40 °F to 230 °F). The color is black.

View all
Regular price
£14.93
excl VAT

In stock +2 days On request On request
For a higher quantity than 0 of product SCL-F-28-1-C-MF-M5-018-S, the lead time of the order will increase by 2 days. The item is not online available in your chosen quantity, there are 8 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

The vacuum suction cup is used in vacuum systems for pick-and-place operations. The main selection criteria for suction cups are material, shape and diameter. This flat type vacuum cup can be used to lift materials witha flat or slightly curved surface. The suction cup is made from black chloroprene rubber (CR) and is recommended for universal use. Please see our datasheet with material specifications.

The diameter of the suction cup is 28 mm and the stroke (cup deflection) is 1 mm. The connection port is M5 and G 1/8 inch and the nominal diameter is 4.3 mm. The shore hardness is 45-55 Type A. The suction cup is suitable for temperatures between -40 °C and 110 °C (-40 °F and 230 °F).

Pros:

  • The cup is delivered including fitting with a M5 and G 1/8 inch connection
  • Quick evacuation time and good stability thanks to the flat shape
  • For universal use
  • The support ribs increase the holding force and stability of the suction cup
  • The integrated suction strainer protects the workpiece from being sucked in
  • Compatible with PIAB suction grippers

SCL series

The SCL series vacuum suction cups come with round and oval shapes, both possible as flat or bellows cups. They are available in different materials, such as NBR, Silicone, SBR, Polyurethane (PUR), Chloroprene Rubber (CR) or NR (natural rubber). The large choice of materials makes them suitable for a wide range of different applications. The diameter of round suction cup ranges from 5 to 225 mm. The oval suction cups are available in 15x5 and 100x35 mm. They have different strokes varying from 0.5 to 30 mm (the bellows suction cups have higher strokes). The suction cups can be either with a pre-installed fitting or without fittings. They are available with additional features like support ribs, suction strainer, ear clamps, robust lips, thin lips and double safety lips.
