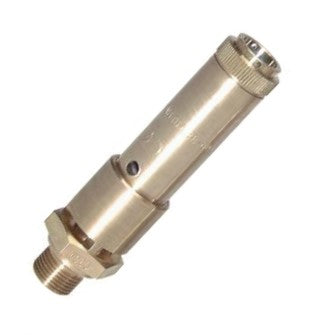

G 1/2'' Brass Pre-Set Safety Valve 4.9 bar (71.07 psi) DN 10

G 1/2'' Brass Pre-Set Safety Valve 4.9 bar (71.07 psi) DN 10
Reference: SFL-B-10-4P9-012
Brand: Tameson

The G 1/2 inch brass pre-set safety valve is a valve that is used to control the pressure in a system by venting once the set pressure has been achieved. The set pressure is pre-set at 4.9 bar (71.07 psi). Brass housing material with a FPM/FKM sealing. Suitable for a temperature range of -25 °C to 180 °C (-13 °F to 356 °F).

View all
Regular price
£35.83
excl VAT

In stock +0 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 0 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 2 - 4 business days

Description
Specifications
Downloads
Related products

The G 1/2 inch brass pre-set safety valve that is used to control the pressure in a system by venting once the set pressure has been achieved. The valve opens using a spring-based mechanism to protect your system from being subjected to pressures that exceed the maximum safety levels. The set pressure is pre-set at 4.9 bar (71.07 psi). This model has G 1/2 inch ports and the housing material is brass with a FPM/FKM sealing. This valve blows the gas off freely into the atmosphere, because of this it is only suitable for compressed air and other non-toxic and non-flammable gases. The maximum blow-off capacity is 239 m3/h. The temperature range of this safety valve is between -25 °C to 180 °C (-13 °F to 356 °F).

Pros:

  • Suitable for all non-toxic and non-flammable gases
  • Reliable FPM/FKM sealing
  • Small form factor
  • High blow-off capacity of 239 m3/h

Cons:

  • Not suitable for liquids
  • Blows freely into the atmosphere

SFL-P series

The SFL-P series are brass and stainless steel pressure relief valves designed to protect your system from over-pressurizing. The valves are available in pre-set pressures of 0.2 - 50 bar (2.9 - 725 psi) and come with various corresponding blow-off capacities. Both DN8 and DN10 are available. The valves have a FPM/FKM sealing for a tight and secure fit. They are suitable for compressed air and other non-toxic, non-inflammable gases. The gases are blown off freely into the atmosphere.

A calibration certificate is not available.
