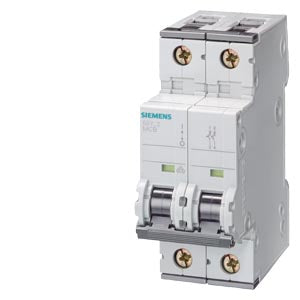

Siemens 5SY4 Circuit Breaker - 5SY45167

Siemens 5SY4 Circuit Breaker - 5SY45167
Siemens 5SY4 Circuit Breaker - 5SY45167
Image may vary slightly
See specifications for accurate information.
Reference: E3269
Brand: Siemens
Mfr. Part: 5SY45167

Automatic cut-out, 5sy4 series, 10 ka, b, c and d characteristic. Miniature circuit breakers from siemens, offer the highest quality and reliability. The excellent technical properties of the devices mean you are always on the safe side. Apart from that you benefit from the innovative mounting options which enable quick and easy installation. The miniature circuit breakers from siemens can be combined as required with a wide range of supplementary components e.g.

View all
£46.82
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 41 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Automatic cut-out, 5sy4 series, 10 ka, b, c and d characteristic. Miniature circuit breakers from siemens, offer the highest quality and reliability. The excellent technical properties of the devices mean you are always on the safe side. Apart from that you benefit from the innovative mounting options which enable quick and easy installation. The miniature circuit breakers from siemens can be combined as required with a wide range of supplementary components e.g.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Built-in depth (mm)
70
Release characteristic
C
Number of poles (total)
2
Number of protected poles
1
Rated insulation voltage Ui (V)
250
Rated impulse withstand voltage Uimp (kV)
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA)
10
Voltage-type
AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA)
20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA)
20
Frequency (Hz)
50 Hz to 50 Hz
Current limiting class
3
Flush-mounted installation
No
Concurrently switching neutral conductor
Yes
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
2
Connectable conductor cross section multi-wired (mm²)
0.75 mm² to 35 mm²
Connectable conductor cross section solid-core (mm²)
0.75 mm² to 35 mm²
