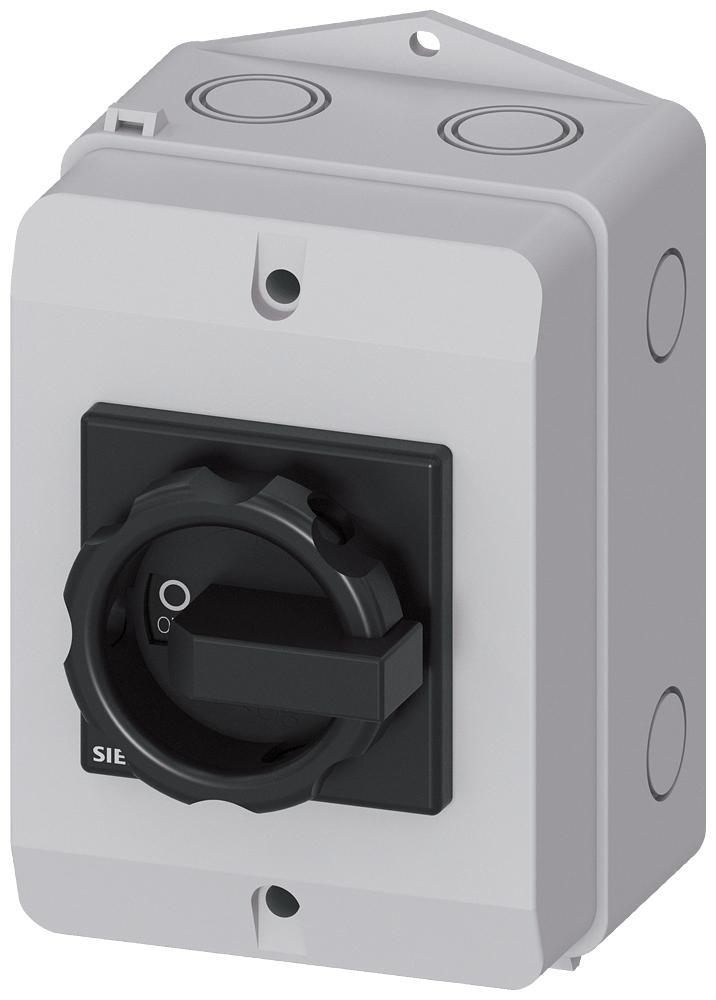

Siemens Sentron Disconnector - 3LD20641GP51

Siemens Sentron Disconnector - 3LD20641GP51
Siemens Sentron Disconnector - 3LD20641GP51
Image may vary slightly
See specifications for accurate information.
Reference: E28F6
Brand: Siemens
Mfr. Part: 3LD20641GP51

SENTRON, Switch disconnector 3LD, main switch, 3-pole, Iu: 16 A, Operating power / at AC-23 A at 400 V: 7.5 kW, molded-plastic encapsulation for metric screw connection, 1 NC, 1 NO, rotary operating mechanism, black.

View all
£62.55
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 36 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

SENTRON, Switch disconnector 3LD, main switch, 3-pole, Iu: 16 A, Operating power / at AC-23 A at 400 V: 7.5 kW, molded-plastic encapsulation for metric screw connection, 1 NC, 1 NO, rotary operating mechanism, black.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Version as reversing switch
No
Number of switches
1
Max. rated operation voltage Ue AC (V)
690
Rated operating voltage (V)
0 V to 0 V
Rated permanent current Iu (A)
16
Rated permanent current at AC-23, 400 V (A)
16
Rated permanent current at AC-21, 400 V (A)
16
Rated operation power at AC-3, 400 V (kW)
5.5
Rated short-time withstand current lcw (kA)
0.34
Rated operation power at AC-23, 400 V (kW)
7.5
Conditioned rated short-circuit current Iq (kA)
0
Number of poles
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Colour control element
Black
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Frame clamp
Degree of protection (IP), front side
IP65
