Siemens SIMATIC PLC Base Unit - 6ES72141HG400XB0
Siemens s7-224xp cpu, china certified. A range of siemens simatic s7-200 standard cpus certified for full use within the china market. With 24 inputs/outputs on board. Expandable with up to 7 expansion modules. 6 fast counters (2x200 khz, 4x400 khz). 2 high-frequency pulse outputs (max. 100 khz). Battery module for long-term backup. Siemens plc. The siemens plc is a high-performance system with a compact and space-saving design. This plc cpu has 2 integrated analogue inputs, 14 integrated digital inputs and 10 integrated digital relay outputs.
- Regular price
- £429.68
Description

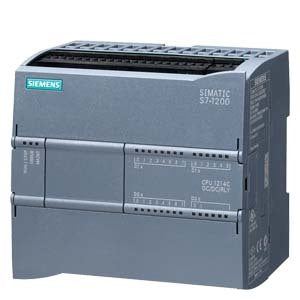

SIMATIC S7-1200, CPU 1214C, is a compact CPU with DC/DC/relay, onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A; 2 AI 0-10 V DC, and a power supply of DC 20.4-28.8 V DC. It has a program/data memory of 100 KB. The SIMATIC S7-1200 Basic Controller offers flexibility thanks to a wide variety of communication options. These Basic Controllers are the first choice for implementing automation tasks flexibly and efficiently in the mid to low performance range. The CPUs are scaled in their performance and are available for different input voltages with transistor or relay outputs. Safety versions are also accessible.
In addition to the existing integrated inputs and outputs, the compact CPUs can be broadened directly on the device or with a wide variety of signal and communication modules to adapt them to your exact requirements. HMI devices can also be connected via the integrated Ethernet interface. The CPU's memory can be increased using a memory card, and the PLC is configured using the STEP 7 Basic software in the TIA Portal.
The micro PLC has a wide range of networking options via various communication standards by means of integrated functions (PROFINET, Modbus, etc.) or add-on modules (IO-Link, AS-i, etc.). Thus it offers maximum flexibility in the topology and when setting up the networks. Due to its compact design, the fields of application for the S7-1200 are very varied and extend from simple packaging machines and heating systems to its use as a subordinate control system in larger plants.
The compact design, modular structure, and integrated IOs help to save space in the control cabinet. The STEP7 configuration software is integrated into the TIA Portal, which can therefore rely on shared data storage, a uniform operating concept, and integrated communication services for all components of a system. This results in lower configuration costs and faster commissioning.
