Soft-start Valve G1 10000 l/min Futura 4

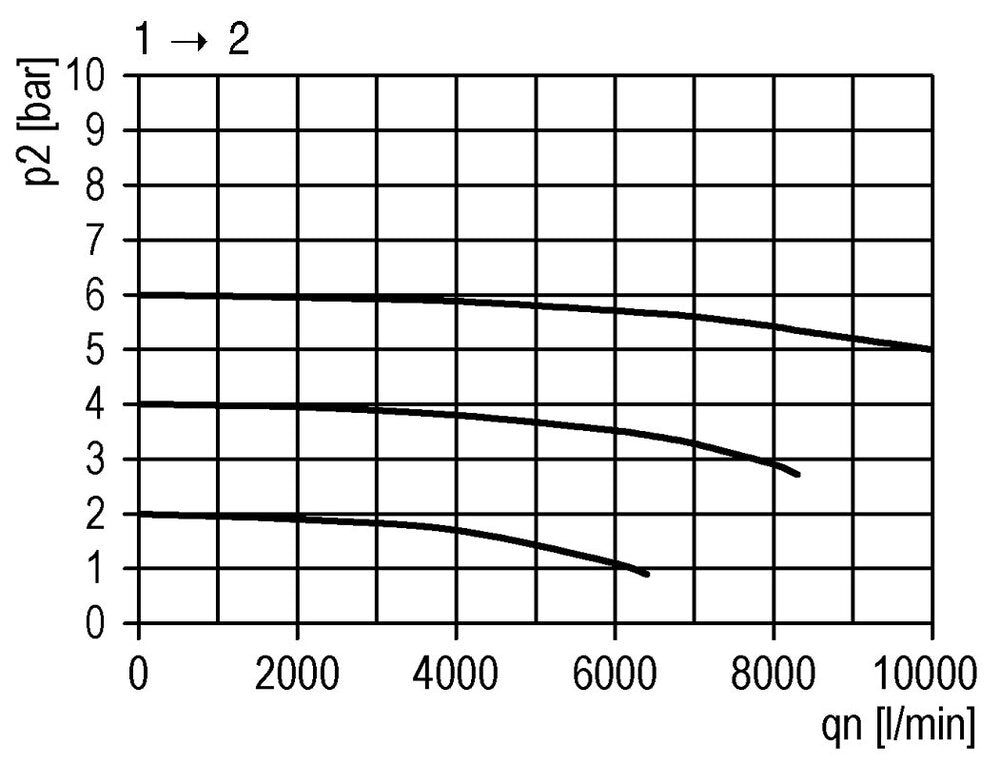

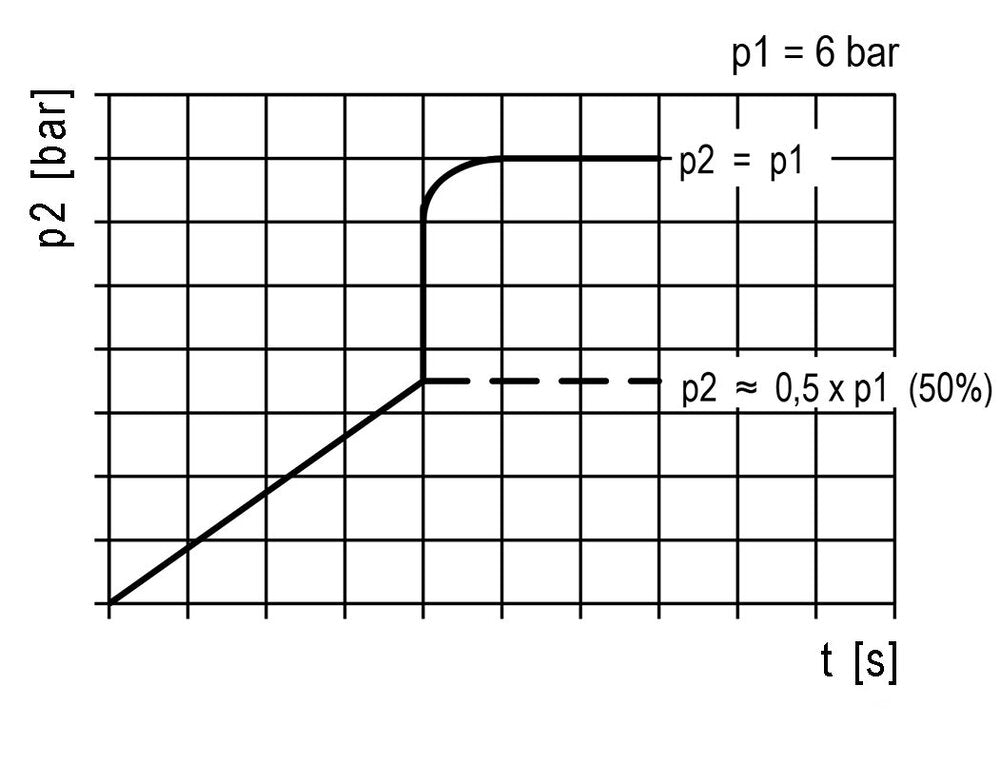

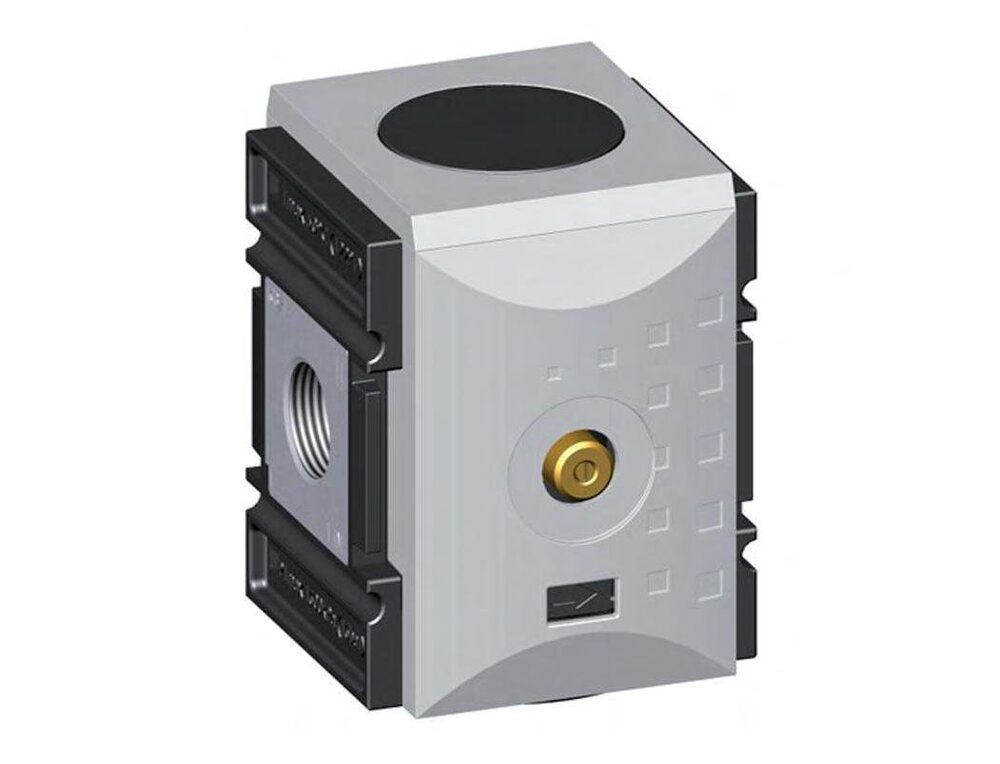

This soft-start valve provides a controlled increase of downstream pressure at startup and can be dumped when needed to exhaust the system pressure quickly. At a pressure of approximately 50% of the input pressure, the start-up valve switches over to maximum throughway. Pressure build-up can be slowed down or sped up using an adjustment screw. A soft start is necessary if cylinders moving too quickly can cause entrapment or damage during machine startup. The valve has G 1 inch ports and the maximum flow rate is 10000 l/min. The input pressure range is from 2.5 to 16 bar (36.25 to 232.0 psi). A shut-off valve must be installed before a start-up valve.
- Regular price
- £176.93
Description
This soft-start valve provides a controlled increase of downstream pressure at startup and can be dumped when needed to exhaust the system pressure quickly. At a pressure of approximately 50% of the input pressure, the start-up valve switches over to maximum throughway. Pressure build-up can be slowed down or sped up using an adjustment screw. A soft start is necessary if cylinders moving too quickly can cause entrapment or damage during machine startup. The valve has G 1 inch ports and the maximum flow rate is 10000 l/min. The input pressure range is from 2.5 to 16 bar (36.25 to 232.0 psi). A shut-off valve must be installed before a start-up valve.
