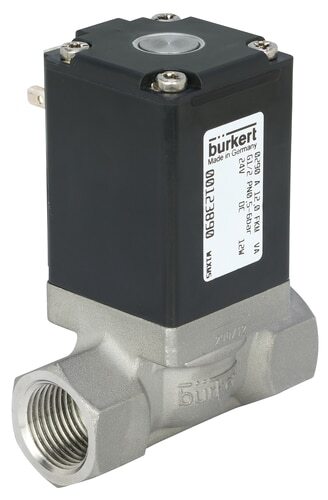

Solenoid Valve NPT 1/2'' NC Stainless steel FKM 0-4bar/58psi 24VDC Vacuum Anti-Waterhammer 0290 468530
Burkert 2/2 way solenoid valve (type 0290) with 1/2 inch NPT threads and a 24 V DC coil. The circuit function of the solenoid valve is normally closed (voltage = open). The semi-direct operating valve opens without differential pressure. Suitable for max media temperatures of 120 °C (248 °F) and a pressure range of 0 - 4 bar (58 psi). Housing of stainless steel with FKM sealing and a 12 mm orifice. The Kv-value is 1.8 m3/h (30.01 l/min at dp = 1 bar water). Suitable for vacuum. Low risk of water hammer thanks to dampened closing.
Note: DIN connector not included.
- Regular price
- £271.79
Description
This is a Burkert semi-direct operating 2/2 way solenoid valve with 1/2 inch NPT threads and a 24 V DC coil. The valve has a stainless steel housing with FKM sealing and an orifice size of 12 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. The semi-direct operating valve opens without differential pressure. Suitable for a pressure of 0 - 4 bar (58 psi) and a maximum temperature of 120 °C (248 °F). The valve has a Kv-value of 1.8 m3/h, this translates to a flow rate of 30 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 2, which means 2 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The stainless steel housing is very durable, strong and resistant to a wide range of chemicals with the exception of chloride solutions. The FKM (fluorine rubber or Viton) sealing has excellent chemical properties, is suited for most oils and solvents but it cannot handle hot water or steam. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve's design prevents water hammering. Suitable for vacuum applications. This valve is certified to comply with cURus standard. The valve has an IP65 rating if properly connected.
Pros:
- Suitable for vacuum applications
- Good protection against the environment thanks to the IP65 rating
- Solenoid valves open and close very fast compared to many other valve types
- Low risk on water hammer, thanks to the dampened closing
Cons:
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
- The coil may get hot when energized. A well ventilated environment is recommended
Series:
The Bürkert 0290 valve is a semi-direct (servo assisted) solenoid valve of the S.EV series. The membrane features a fixed coupling to a plunger. This means that the valve opens without a differential pressure over the valve. It can be used for low pressure applications, such as gravity fed systems or closed circulating circuits. The valve is designed for a quiet operation. All UC variants have electronic control to achieve a high inrush current to open the valve and a low holding current to keep the valve in the opened position. This "kick and drop" system results in low power consumption and low heat generation, contributing to the 0290's extended lifecycle.
Please note: this product is made to order and can unfortunately not be returned.
