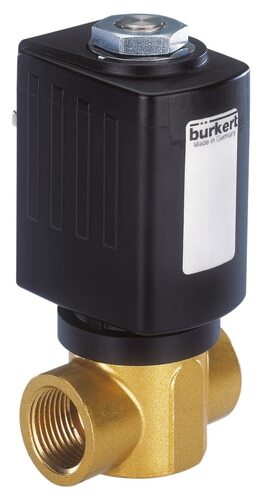

Solenoid Valve NPT 1/4'' NO Brass FKM 0-10bar/145psi 120VAC 6027 20047392
Burkert 2/2 way solenoid valve (type 6027) with 1/4 inch NPT threads and a 120 V AC coil. The circuit function of the solenoid valve is normally open (voltage = close). The valve is direct operating, so no differential pressure required. Suitable for max media temperatures of 140 °C (284 °F) and a pressure range of 0 - 10 bar (145 psi). Housing of brass with FKM sealing and a 4 mm orifice. The Kv-value is 0.54 m3/h (9.0 l/min at dp = 1 bar water).
Note: DIN connector not included.
- Regular price
- £223.24
Description
This is a Burkert direct operating 2/2 way solenoid valve with 1/4 inch NPT threads and a 120 V AC coil. The valve has a brass housing with FKM sealing and an orifice size of 4 mm. The circuit function of the solenoid valve is normally open, which means the valve closes when voltage is applied. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure of 0 - 10 bar (145 psi) and a maximum temperature of 140 °C (284 °F). The valve has a Kv-value of 0.54 m3/h, this translates to a flow rate of 9 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 1, which means 1 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The FKM (fluorine rubber or Viton) sealing has excellent chemical properties, is suited for most oils and solvents but it cannot handle hot water or steam. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. This valve is certified to comply with cURus standard. The valve has an IP65 rating if properly connected. The integrated power reduction feature reduces energy consumption by 75%. The valve is equipped with a "kick-and-drop" function, which provides a high inrush current to switch the valve and then reduces to a low holding current to keep the valve in position. This results in a significant reduction in power consumption.
Pros:
- Peak-and-hold electronics enable low energy consumption by delivering a high current to open the valve, which then decreases to a low holding current
- Good protection against the environment thanks to the IP65 rating
- Solenoid valves open and close very fast compared to many other valve types
Cons:
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
- The coil may get hot when energized. A well ventilated environment is recommended
Series:
The Bürkert 6027 valve is a direct operated plunger solenoid valve. The valve requires no pressure difference for opening. Port connection sizes are available from 1/4 inch up to 1/2 inch. This durable valve is available with a wide range of options. The 6027 type has a range of high pressure versions, including a version up to 250 bar with ceramic sealings. There are versions for oil burners, gas appliances (EN 161) and explosive environments (ATEX). An optional sliding ring bearing increases the service life with dry gases. High pressure versions for liquids, low temperature versions (from -40°C), as well as explosion proof versions are available.
Please note: this product is made to order and can unfortunately not be returned.
