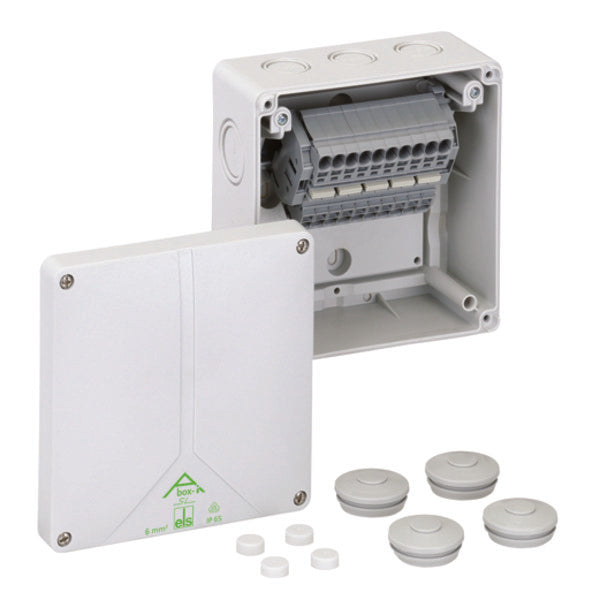

Spelsberg Abox-I Surface-Mounted Box Wall/Ceiling - 49081001
Notice: This product will be discontinued in the future
This junction box from Spelsberg's Abox-i series has 12 entries (including 1 rear entry), 12 gland breakout ports (M32) and high-mounted clamp. The double membrane entries (IP66) are self-sealing with a sealing range of 14 - 21mm. The 5-pole terminal has a maximum conductor cross-section of 6mm² (according to DIN EN 60998) at a current carrying capacity of 41A. Clampable cross section per pole: 4 x 0.5 to 10mm² fixed and flexible core. With an IP65 protection rating and IK08 impact resistance, the junction box has an industry quality and is extremely weatherproof.
Notice: This product will be discontinued in the future
Description
This junction box from Spelsberg's Abox-i series has 12 entries (including 1 rear entry), 12 gland breakout ports (M32) and high-mounted clamp. The double membrane entries (IP66) are self-sealing with a sealing range of 14 - 21mm. The 5-pole terminal has a maximum conductor cross-section of 6mm² (according to DIN EN 60998) at a current carrying capacity of 41A. Clampable cross section per pole: 4 x 0.5 to 10mm² fixed and flexible core. With an IP65 protection rating and IK08 impact resistance, the junction box has an industry quality and is extremely weatherproof.
