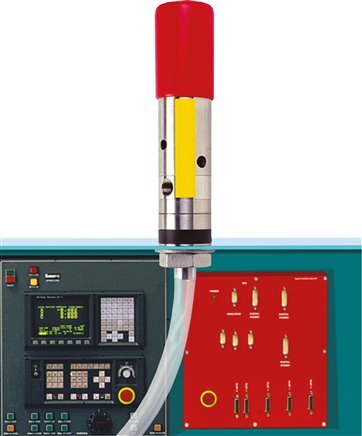

Spot Cooling Tube With Cold Air Generator 24V DC
This vortex is ideal for spot cooling. It has an air inlet and male threaded cold air outlet. Incoming compressed air is separated, by a Vortex generator, into a cold and hot air stream that exit the tube at the opposite ends. The difference between the temperatures of the inlet and outlet is controlled via an adjustable flow control valve. The air quantity reduces when the set temperature is reduced. Always use filtered, unoiled compressed air.
Suitable for 1800x1800x600 mm cabinet cooling, 24 V DC thermostat controlled and supplied with yellow, red, blue and brown Vortex generators and a hose for air distribution. The exhaust valve is integrated in the tube.
- Regular price
- £933.38
Description
This vortex is ideal for spot cooling. It has an air inlet and male threaded cold air outlet. Incoming compressed air is separated, by a Vortex generator, into a cold and hot air stream that exit the tube at the opposite ends. The difference between the temperatures of the inlet and outlet is controlled via an adjustable flow control valve. The air quantity reduces when the set temperature is reduced. Always use filtered, unoiled compressed air.
Suitable for 1800x1800x600 mm cabinet cooling, 24 V DC thermostat controlled and supplied with yellow, red, blue and brown Vortex generators and a hose for air distribution. The exhaust valve is integrated in the tube.
Pros:
- Generated temperatures range from -40°C on the cold air side to 110°C on the hot air side
- Operating pressure ranges from 1 to 10 bar, the optimal value is 5
- Precise temperature control (± 0.6 °C)
- Thermostat controlled
- Manufactured to an IP56 protection class
