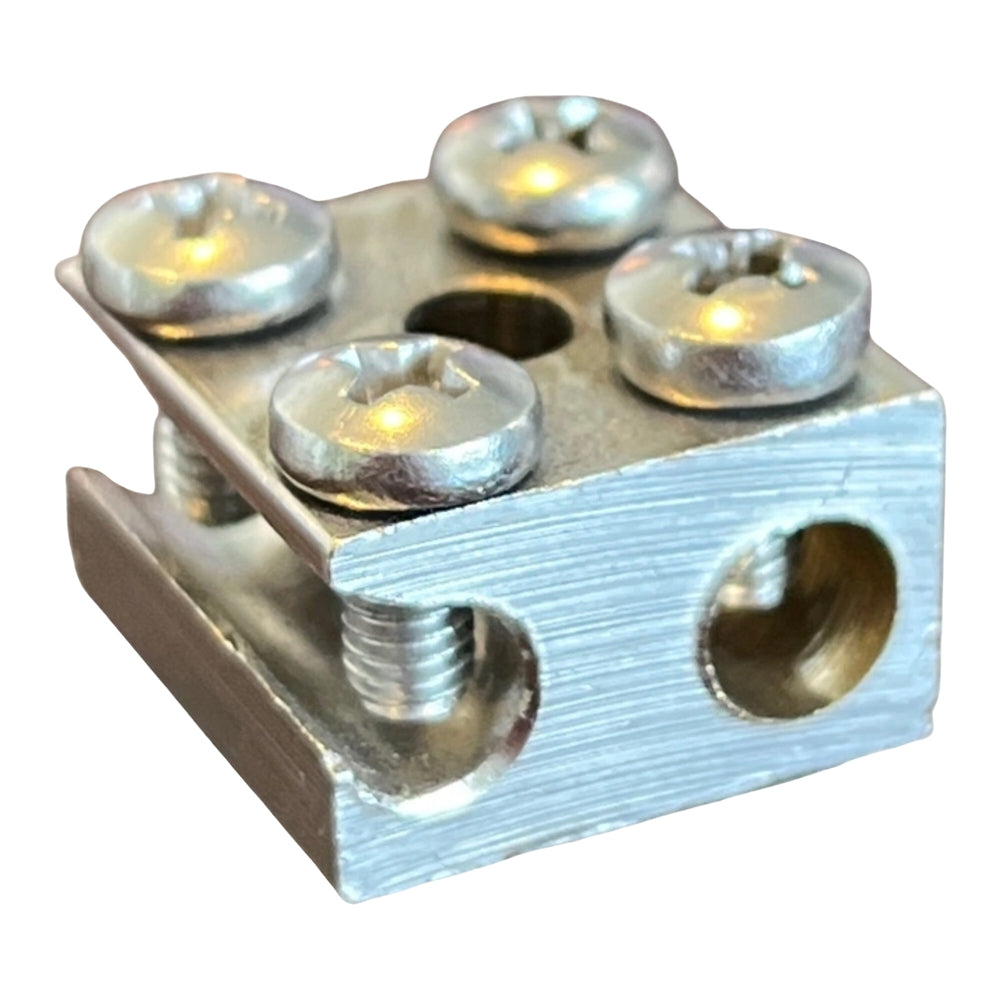

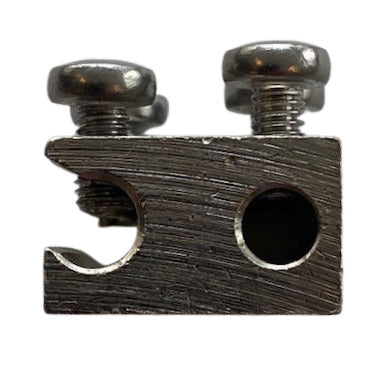

Stainless Steel Earthing Block 6-25mm² For Wire Tray - CHAB2506 [2 Pieces]

Stainless Steel Earthing Block 6-25mm² For Wire Tray - CHAB2506 [2 Pieces]
Stainless Steel Earthing Block 6-25mm² For Wire Tray - CHAB2506 [2 Pieces]
Stainless Steel Earthing Block 6-25mm² For Wire Tray - CHAB2506 [2 Pieces]
Stainless Steel Earthing Block 6-25mm² For Wire Tray - CHAB2506 [2 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3ZH9-X2
Brand: Conex
Mfr. Part: CHAB2506

Professional stainless steel earthing block designed for PV wire tray and outdoor installations. Features dual connection points for 6-10mm² and 6-25mm² wires, with block-style mounting suitable for wire trays, panels, or walls. Recommended for use with wire end sleeves (minimum 18mm pin length) when using flexible wire cores. Provides supplementary protection for various installation types.

Contains 2 pieces

View all
£7.52
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

Professional stainless steel earthing block designed for PV wire tray and outdoor installations. Features dual connection points for 6-10mm² and 6-25mm² wires, with block-style mounting suitable for wire trays, panels, or walls. Recommended for use with wire end sleeves (minimum 18mm pin length) when using flexible wire cores. Provides supplementary protection for various installation types.

Pros:

  • Suitable for outdoor and PV applications
  • Dual wire connection capability (6-25mm²)
  • Simple mounting on multiple surface types
  • Corrosion-resistant stainless steel construction

Specifications

Construction type
Surface mounting fix
Model
Only clamp
Insulator
No
Explosion-tested version
No
Heighti
11 mm
Widthi
19 mm
Length
19 mm
Number of connections round conductor total
2
Number of connections round conductor 8 mm
1
Number of connections round conductor 10 mm
1
Number of connections round conductor 8-10 mm
1
Number of connections conductor to 6 mm² fixed
1
Number of connections conductor to 16 mm² fixed
1
Number of connections conductor to 25 mm² fixed
1
Material of contact rail
Stainless steel V2A
Surface of the contact rail
Untreated
Material of clamp
Stainless steel V2A
Surface of the clamp
Untreated
