Sylvania Insaver Slim Downlight/Spotlight/Floodlight - 0030303

Notice: This product is discontinued

Discontinued

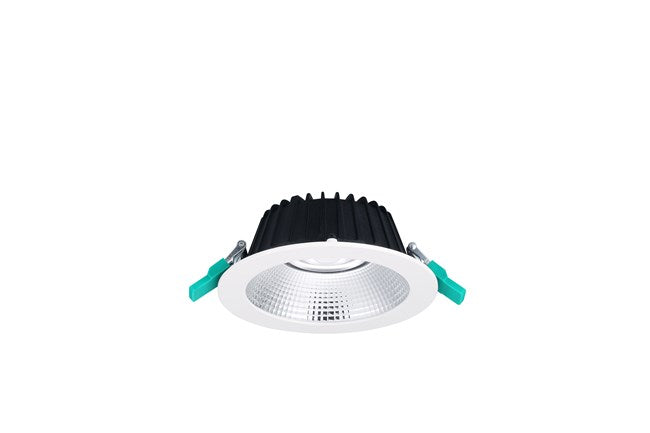

Sylvania Insaver Slim Downlight/Spotlight/Floodlight - 0030303
Sylvania Insaver Slim Downlight/Spotlight/Floodlight - 0030303
Image may vary slightly
See specifications for accurate information.
Reference: E3AKP
Brand: Sylvania
Mfr. Part: 0030303

Sylvania Insaver Slim downlight/spotlight/lightbulb, subcategory downlight, luminous flux 1600lm, effective luminous flux according to IEC 1600lm, temperature 4000K, light color white, system power 13W, housing white, suitable for recessed mounting, recessed diameter 175mm, degree of protection (IP) IP44.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Sylvania Insaver Slim downlight/spotlight/lightbulb, subcategory downlight, luminous flux 1600lm, effective luminous flux according to IEC 1600lm, temperature 4000K, light color white, system power 13W, housing white, suitable for recessed mounting, recessed diameter 175mm, degree of protection (IP) IP44.

Downloads

Specifications

Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Not adjustable
With movement sensor
No
With light sensor
No
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of lamps
0
Lamp holder
None
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Surface protection
The type of surface protection of the component.
Other
Colour housing
White
Material cover
None
Surface brushed
No
Voltage-type
AC
Nominal voltage (V)
220 V to 240 V
LED nominal current at constant current (mA)
0 mA to 0 mA
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Reflector
Other
Light distributor
Diffuser lens/optic/panel
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Light outlet
Direct
Total harmonic distortion
20
Rated life time L70/B50 at 25 °C (h)
90000
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
0
Constant light output (CLO)
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP44
Impact strength
IK07
Protection class
II
Rated ambient temperature according to IEC62722-2-1 (°C)
-10 °C to 40 °C
Suitable for lamp power (W)
0 W to 0 W
Max. system power (W)
13
Colour of light
White
Colour temperature (K)
4000 K to 4000 K
Colour rendering index CRI
80-89
Luminous flux (lm)
1600 lm to 1600 lm
Rated luminous flux according to IEC 62722-2-1 (lm)
1600
Luminous intensity (cd)
0
Power factor
0.9
Colour temperature adjustable
No
Beam angle adjustable
No
Height/depth (mm)
60
Built-in height/depth (mm)
0
Built-in diameter (mm)
0 mm to 0 mm
Type of wiring
Through wiring included
Number of poles
2
Conductor cross section (mm²)
0
Connectable conductor cross section (mm²)
0 mm² to 0 mm²
Connection type
Other
Luminaire with limited surface temperature, sign "D“
No
Max. number of luminaires per miniature circuit breaker B16
20
Max. number of luminaires per miniature circuit breaker C16
34
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
850 °C - 30 s
Luminaire efficacy (lm/W)
123
Photobiological safety according to EN 62471
RG1
Suitable for workplace according to EN 12464-1
Yes
Covering of the luminaire with thermally insulating material possible
No
IFTTT support available
No
Colour consistency (McAdam ellipse)
SDCM3
Unified Glare Ratio (UGR)
19
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
