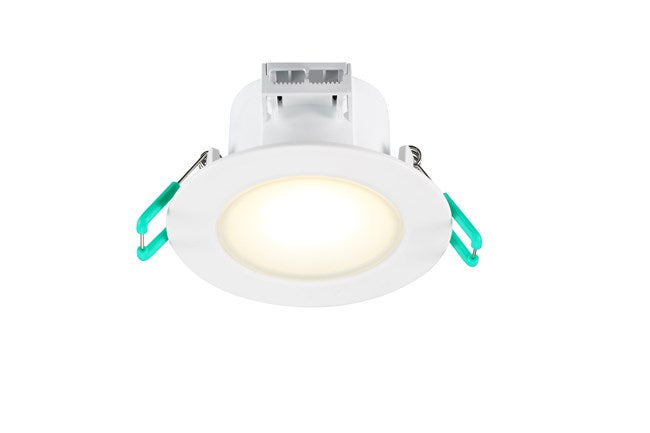

Sylvania Start eco Downlight/Spotlight/Floodlight - 0005380

Notice: This product is discontinued

Discontinued
Sylvania Start eco Downlight/Spotlight/Floodlight - 0005380
Sylvania Start eco Downlight/Spotlight/Floodlight - 0005380
Image may vary slightly
See specifications for accurate information.
Reference: E3AMG
Brand: Sylvania
Mfr. Part: 0005380

Sylvania Start eco Spot downlight/spotlight/spotlight, subcategory spotlight, luminous flux 600lm, effective luminous flux according to IEC 600lm, temperature 4000K, light color white, system wattage 7W, housing white, suitable for recessed mounting, recessed diameter 68mm, degree of protection (IP) IP65, dimmable.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Sylvania Start eco Spot downlight/spotlight/spotlight, subcategory spotlight, luminous flux 600lm, effective luminous flux according to IEC 600lm, temperature 4000K, light color white, system wattage 7W, housing white, suitable for recessed mounting, recessed diameter 68mm, degree of protection (IP) IP65, dimmable.

Downloads

Specifications

Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
With movement sensor
No
With light sensor
No
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of lamps
0
Lamp holder
Other
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Colour housing
White
Material cover
Plastic, opal
Surface brushed
No
Voltage-type
AC
Nominal voltage (V)
220 V to 240 V
LED nominal current at constant current (mA)
0 mA to 0 mA
With control gear
No
Exchangeable control gear
No
Dimming depending on control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
Yes
Dimming phase cut-off
Yes
Dimming phase cut-on
Yes
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Light distributor
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Total harmonic distortion
0
Rated life time L70/B50 at 25 °C (h)
30000
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
0
Constant light output (CLO)
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP65
Impact strength
IK03
Protection class
II
Rated ambient temperature according to IEC62722-2-1 (°C)
-10 °C to 40 °C
Suitable for lamp power (W)
0 W to 0 W
Max. system power (W)
7
Colour of light
White
Colour temperature (K)
4000 K to 4000 K
Colour rendering index CRI
80-89
Luminous flux (lm)
600 lm to 600 lm
Rated luminous flux according to IEC 62722-2-1 (lm)
600
Luminous intensity (cd)
0
Power factor
0.85
Colour temperature adjustable
No
Beam angle adjustable
No
Height/depth (mm)
47
Built-in width (mm)
0
Built-in height/depth (mm)
0
Built-in length (mm)
0
Built-in diameter (mm)
0 mm to 0 mm
Type of wiring
Through wiring included
Number of poles
0
Conductor cross section (mm²)
0
Connectable conductor cross section (mm²)
0 mm² to 0 mm²
Connection type
Other
Luminaire with limited surface temperature, sign "D“
No
Max. number of luminaires per miniature circuit breaker B16
0
Max. number of luminaires per miniature circuit breaker C16
100
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy (lm/W)
86
Photobiological safety according to EN 62471
RG0
Suitable for workplace according to EN 12464-1
No
Covering of the luminaire with thermally insulating material possible
No
Colour consistency (McAdam ellipse)
SDCM6
Unified Glare Ratio (UGR)
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
