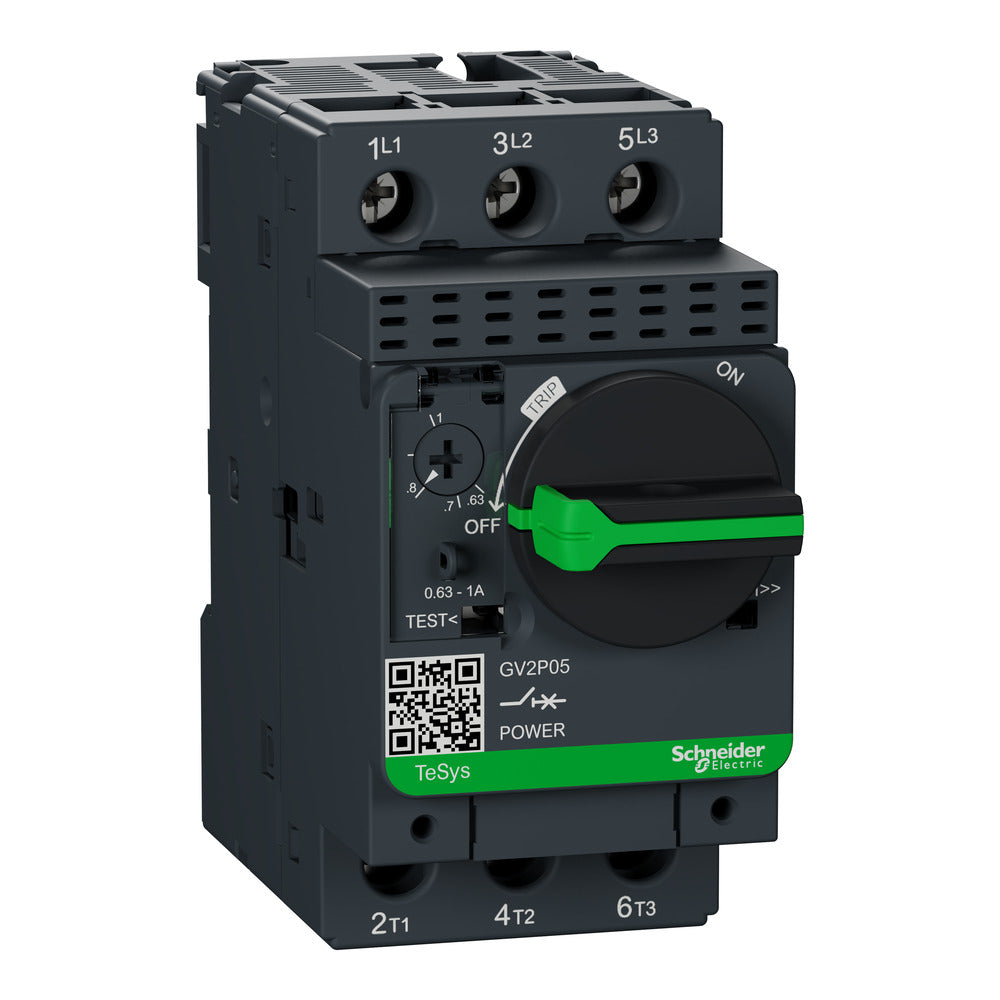

TeSys GV2P05 Motor Circuit Breaker 0.63-1A - GV2P05
Notice: This product will be discontinued in the future
Three-pole motor circuit breaker with thermal-magnetic protection rated for 1A/690V, suitable for three-phase motors up to 0.25kW@400V. Features adjustable thermal range of 0.63-1A, magnetic trip at 13xIn, and 100kA breaking capacity at 400V. Includes screw terminals and rotary handle control rated for 100,000 AC-3 cycles.
Notice: This product will be discontinued in the future
Description
Three-pole motor circuit breaker with thermal-magnetic protection rated for 1A/690V, suitable for three-phase motors up to 0.25kW@400V. Features adjustable thermal range of 0.63-1A, magnetic trip at 13xIn, and 100kA breaking capacity at 400V. Includes screw terminals and rotary handle control rated for 100,000 AC-3 cycles.
Pros:
- High breaking capacity of 100kA at 400V
- 100,000 cycle AC-3 rated rotary operation
- Multi-standard certified including ATEX and Marine
- Green Premium eco-label compliant
