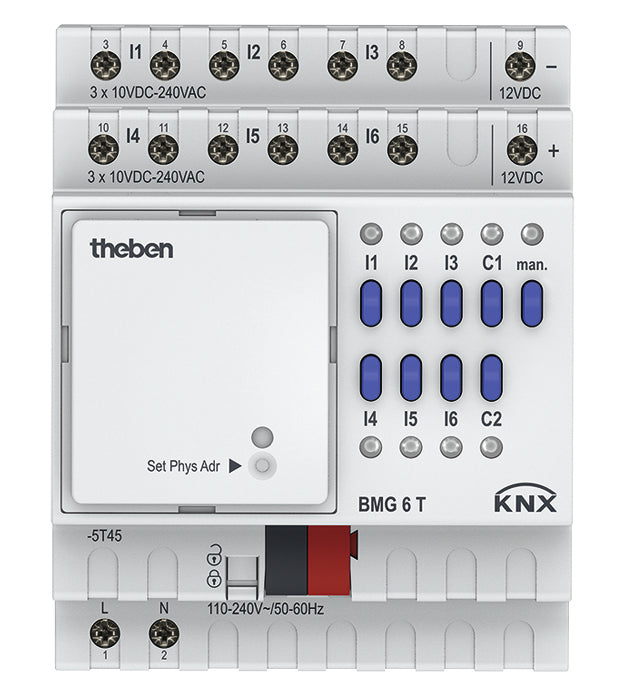

Theben Binary Input Bus System - 4930230
Binary input for 6 channels, base module, expandable with BME 6 T up to a maximum of 18 channels or other MIX expansion modules. Suitable for DIN-rail mounting with a width of 72 mm. It features multi-voltage inputs ranging from 8-250V AC/DC.
The module provides auxiliary voltage for potential free inputs. All inputs can be used with different voltages. An LED display is present for all inputs.
Functions include block object and 2 output objects per channel, with adjustable conditions when returning from bus voltage. The software functions are:
- Switch/push-button
- Dimming
- Blinds
- Encoder
- Counting function
- Regular price
- £275.52
Description
Binary input for 6 channels, base module, expandable with BME 6 T up to a maximum of 18 channels or other MIX expansion modules. Suitable for DIN-rail mounting with a width of 72 mm. It features multi-voltage inputs ranging from 8-250V AC/DC.
The module provides auxiliary voltage for potential free inputs. All inputs can be used with different voltages. An LED display is present for all inputs.
Functions include block object and 2 output objects per channel, with adjustable conditions when returning from bus voltage. The software functions are:
- Switch/push-button
- Dimming
- Blinds
- Encoder
- Counting function
