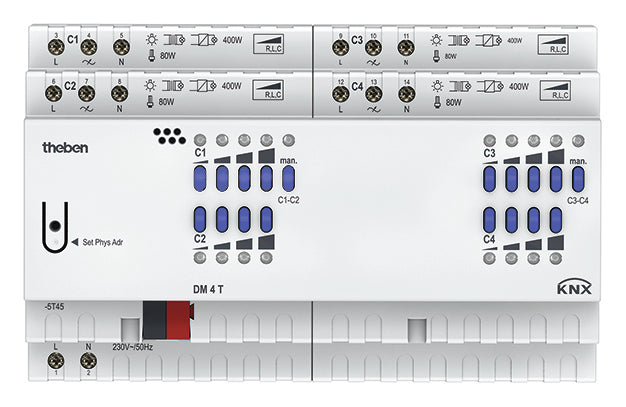

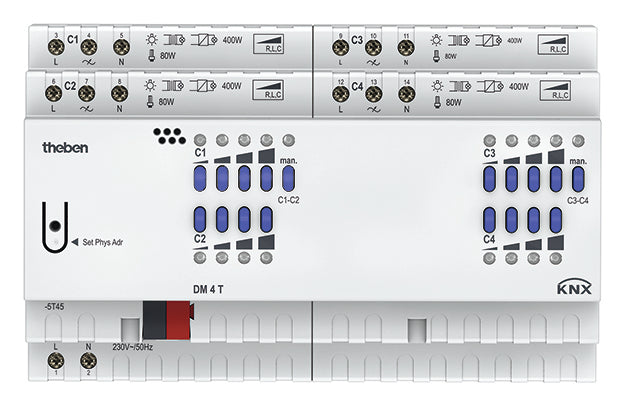

Theben DM Dimactor Bus System - 4940275
Theben DM dimming actuator bus system dimming actuator, DRA (DIN-rail adapter), bus system KNX, load type universal and LED retrofi, output power 5 - 400W, 4 outputs, protection rating (IP) IP20, width in module units 8, bus connection included, frequency 50Hz, manual operation, with LED indication.
- Regular price
- £481.81
Description
KNX universal dimactor 4-way, DIN-rail mounting, width 145 mm, dimming range 0-100%, maximum load: 4 x 400 W/VA or 1 x 1600W/VA. When using the channels as control output, up to 5 dimboosters DMB 1 T can be controlled with a maximum power of 5 x 400W/VA per channel.
Suitable for dimming incandescent lamps, low voltage and high voltage halogen lamps, dimmable energy saving lamps, dimmable LED-retrofit lighting.
- Different dimming curves make it possible to dim the most diverse light sources
- It's also suitable for controlling various fans.
It features automatic load recognition (adjustable), manual operation 0, 25, 50, 75 and 100% or test.
