Theben Luna Twilight Switch For DIN-Rail - 1220130

Theben Luna Twilight Switch For DIN-Rail - 1220130
Theben Luna Twilight Switch For DIN-Rail - 1220130
Image may vary slightly
See specifications for accurate information.
Reference: E2K5K
Brand: Theben
Mfr. Part: 1220130

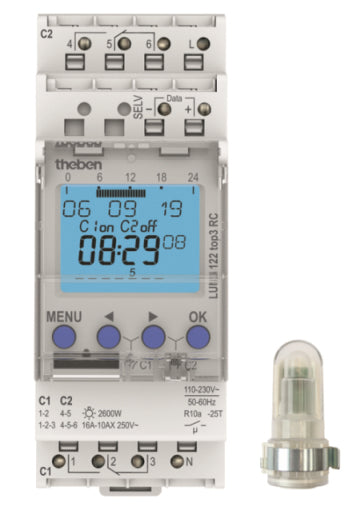

Theben Luna twilight switch for din-rail, with programmable night switch-off, mounting type light sensor wall-mounted, protection category (IP) IP20, protection category (IP) light sensor IP55, protection class light sensor II, width in module units 2, installation depth 69.2mm.

View all
£255.08
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 9 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Expected delivery in 5 - 7 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

Theben Luna twilight switch for din-rail, with programmable night switch-off, mounting type light sensor wall-mounted, protection category (IP) IP20, protection category (IP) light sensor IP55, protection class light sensor II, width in module units 2, installation depth 69.2mm.

Specifications

Rated voltage
230 V
Rated frequency
50..60 Hz
Max. incandescent lamp load
3600 W
Max. load fluorescent lamp
3600 VA
Max. load fluorescent lamp (Duo circuit)
3600 VA
Max. load fluorescent lamp (parallel compensated)
1200 VA
Max. switching current (cos phi = 0.6)
10 A
Rated switch current
16 A
Adjustment range brightness value
1..99000 lx
With programmable overnight shutoff
Yes
Push button input
No
Rated voltage light sensor
0 V
Max. conductor length light sensor
100 m
Protection class light sensor
II
Mounting method light sensor
Wall surface mounted
Mounting method
DIN raili
Width in number of modular spacings
2
Built-in depth
69.2 mm
Degree of protection (IP)i
IP20
Degree of protection (IP) light sensor
IP55
