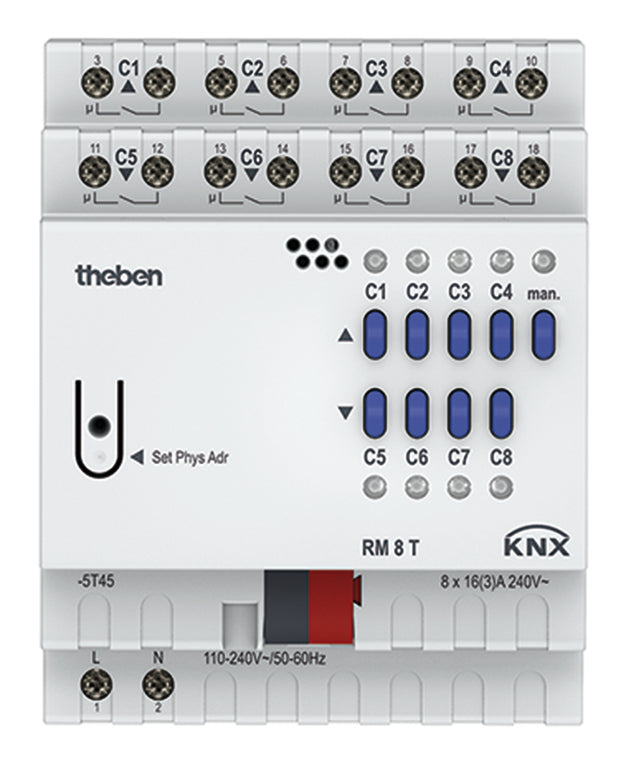

Theben RM Switch Actuator Bus System - 4940200
Notice: This product will be discontinued in the future
Theben RM switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, max. Number of switching outputs 8, operating voltage (measurement voltage) 110 - 230V, degree of protection (IP) IP20, width in module units 4, bus connection included, manual operation, max. Switching current 16A.
Notice: This product will be discontinued in the future
Description
EIB/KNX switch/blind actuator, with relay outputs for 8 switching channels or 4 blind channels, DIN-rail mounting, width 72 mm, LED switching status display for each channel, manual operation with status display (even without bus voltage), contacts (make/break) and participation in central function as continuous on, continuous off, central switching, scenes, scenes save/call, switching functions:
- on/off,
- impulse,
- on/off delay,
- staircase lighting,
Logical functions:
- blocking,
- AND,
- releasing,
- OR.
Feedback object for each channel, central objects with and without priority, scenes call and save (object), scene object for each channel, 16A/250V cos phi = 1
