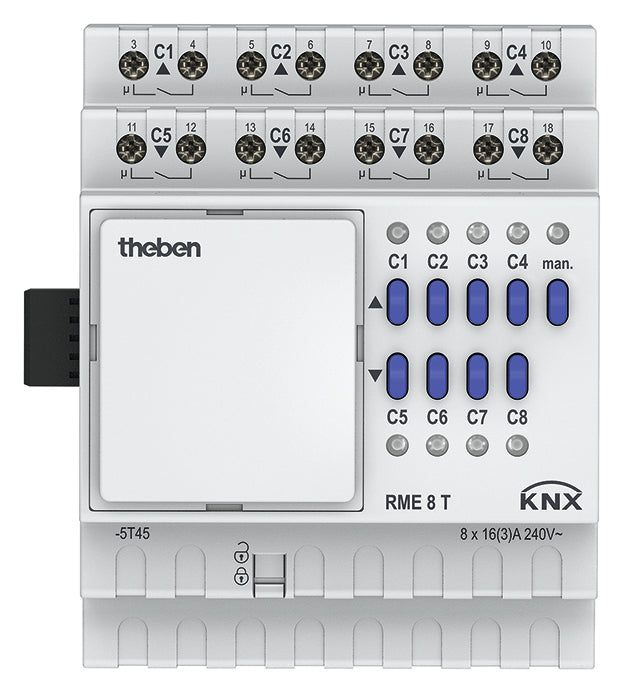

Theben RME Switching Actuator Bus System - 4930205
Theben RME switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, max. Number of switching outputs 8, operating voltage (measurement voltage) 110 - 230V, protection rating (IP) IP20, width in module units 4, bus module removable, manual operation, max. Switching current 16A.
- Regular price
- £211.04
Description
EIB/KNX switch-/blind actuator, expansion module, with relay outputs for 8 switching channels or 4 blind channels, expandable with RME 8 T or with other MIX expansion modules, DIN-rail mounting, width 72 mm, device and bus coupling can be replaced independently from each other. Switch state display with LEDs for each channel, manual operation on the device (also without bus voltage), contacts (make/break) and participation in central function like continuous on, continuous off, central switching, scenes, saving/calling scenes, switching functions: on/off, pulse, on/off delay, staircase lighting, logical functions: blocking, AND, releasing, OR.
Feedback object for each channel, central objects with and without priority, calling and saving scenes (object), scene object for each channel, 16A/250V cos phi = 1.
