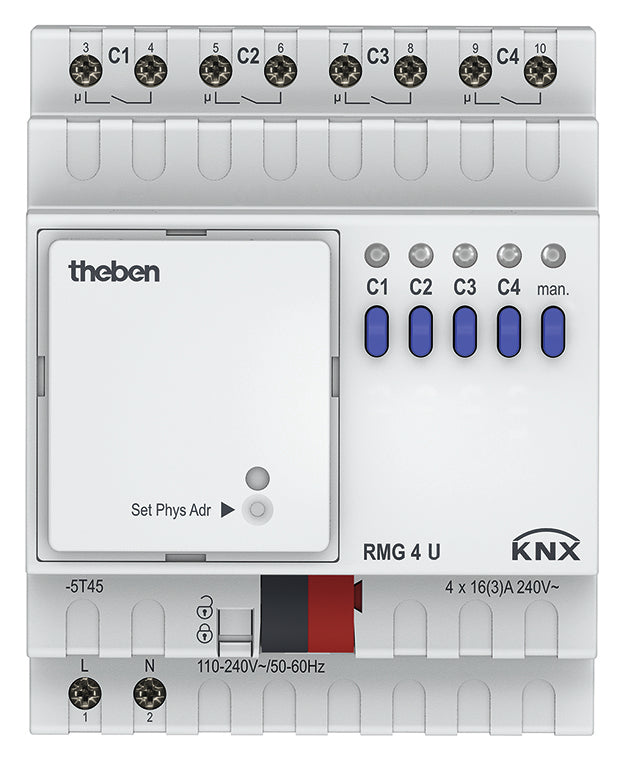

Theben RMG Bus Switching Actuator - 4930223
Notice: This product will be discontinued in the future
Theben RMG switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, max. Number of switching outputs 4, operating voltage (measurement voltage) 110 - 230V, degree of protection (IP) IP20, width in module units 4, bus connection incl., bus module removable, manual operation, max. Switching current 16A.
Notice: This product will be discontinued in the future
Description
KNX switching actuator with relay outputs for 4 switching channels, expandable with RME 4 U up to a maximum of 12 channels or with other MIX extension modules. DIN rail mounting, width 4 TE, base module and bus coupler are mechanically decoupled and can be exchanged independently of each other.
LED indication for each channel, manual operation with status display (also without bus voltage), contact functions (make/break) and participation in central objects such as continuous on, continuous off, central switching and scene storing/calling.
Other functions include:
- on/off
- impulse
- on/off-delay
- staircase-time switch with pre-warning according to DIN 18015-2
- logical functions: blocking and releasing
Feedback object for each channel, central objects with and without priority, scene calling and storing (object), scene object for each channel.
