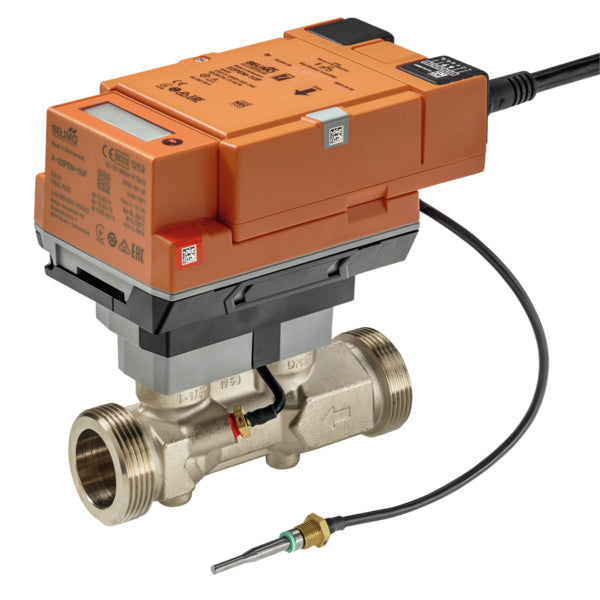

Belimo Thermal Energy Meter 24VAC/DC DN32 6m3/h MID / EN 1434 22PEM-1UF

This Belimo thermal energy meter is a versatile tool for accurately measuring flow and temperature in heating or cooling circuits. This thermal energy meter has an internal diameter of DN 32, the port size of G 1 1/2 inch, and can withstand pressure up to 25 bar. The power supply voltage is 24 V AC/DC. This thermal energy meter has a nominal flow of 6 m3/hr with a maximum flow of 12 m3/hr. The maximum thermal output is 1400 Kw and the theoretical kvs value of 16 m3/hr. This thermal energy meter offers communication via BACnet, Modbus, or MP-Bus, and configuration is made easy through the Belimo Assistant App via NFC technology or a web server. The thermal energy meter can generate a commissioning report automatically and can be connected to the Belimo Cloud if needed. This thermal energy meter is certified according to MID and meets the requirements of EN1434.

Pros:

• Precise flow measurement using ultrasonic time-of-flight technology
• IoT-ready for convenient billing integration
• Capability for analogue/digital signal conversion for various sensors or switches
• Provides analogue output to display fluid flow rate or temperature
• Effortless integration into building management systems through bus communication
• Direct power supply and data transmission via Ethernet cable (PoE) for enhanced efficiency
