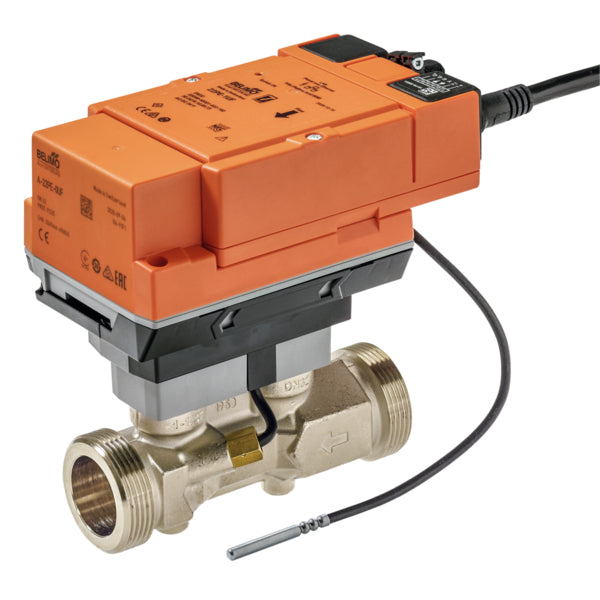

Belimo Thermal Energy Meter 24VAC/DC DN40 10m3/h 22PE-1UG

This Belimo thermal energy meter is designed to measure energy in a closed heating or cooling circuit. This thermal energy meter comes with an internal diameter of DN 40, the port size of G 2 inch and can withstand a pressure of 25 bar. The power supply voltage is 24 V AC/DC. This thermal energy meter can handle a nominal flow of 10 m3/hr and a highest flow of 20 m3/hr. The maximum thermal output is 2330Kw and the theoretical kvs value is 23.6 m3/hr. This thermal energy meter is equipped with features like automatic glycol compensation and measures glycol content continuously. The thermal energy meter can be powered via PoE if required and supports communication via BACnet, Modbus, MP-Bus or M-Bus. This thermal energy meter is parametrised with the Belimo Assistant App via NFC technology or a web server and can generate a commissioning report automatically and can be connected to the Belimo Cloud.

Pros:

• Precise flow measurement using ultrasonic time-of-flight technology
• IoT-ready for convenient billing integration
• Capability for analogue/digital signal conversion for various sensors or switches
• Provides analogue output to display fluid flow rate or temperature
• Effortless integration into building management systems through bus communication
• Direct power supply and data transmission via Ethernet cable (PoE) for enhanced efficiency
