Tridonic LED driver - 87500771

Notice: This product is discontinued

Discontinued

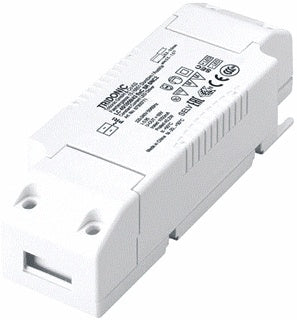

Tridonic LED driver - 87500771
Tridonic LED driver - 87500771
Image may vary slightly
See specifications for accurate information.
Reference: E3BUB
Brand: Tridonic
Mfr. Part: 87500771

Tridonic led driver static, output voltage 25 - 43V, output power 26.3 - 45.2W, output current 1050mA, without dimming function, suitable for constant current, housing plastic housing, degree of protection (IP) IP20.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Tridonic led driver static, output voltage 25 - 43V, output power 26.3 - 45.2W, output current 1050mA, without dimming function, suitable for constant current, housing plastic housing, degree of protection (IP) IP20.

Downloads

Specifications

Model
Static
Suitable for outdoor use
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Constant light output (CLO)
No
No dim function
Yes
Housing
Plastic housing
Suitable for constant current
Yes
Suitable for constant voltage
No
Output voltage (V)
25 V to 43 V
Output current (mA)
1050 mA to 1050 mA
Suitable for DC-voltage (primary side)
No
Output power (W)
26.3 W to 45.2 W
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Protection class
II
Length (mm)
127
Width (mm)
The product's width without packaging.
43
Height (mm)
The product's height without packaging.
30
Diameter size (mm)
52.43
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
