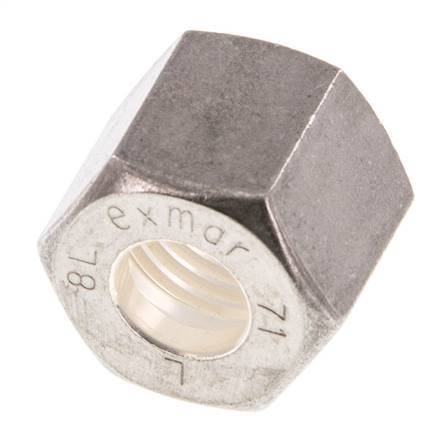

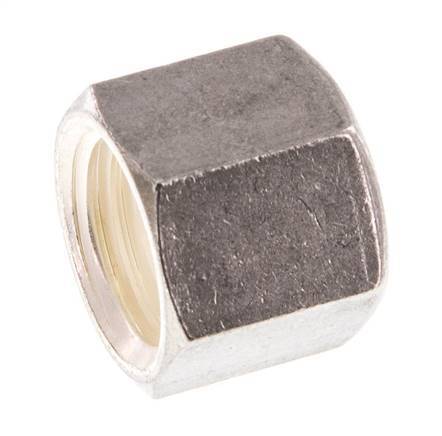

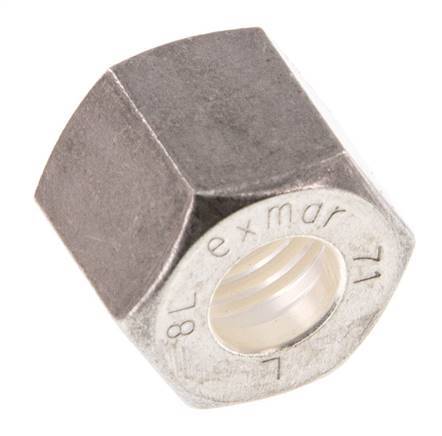

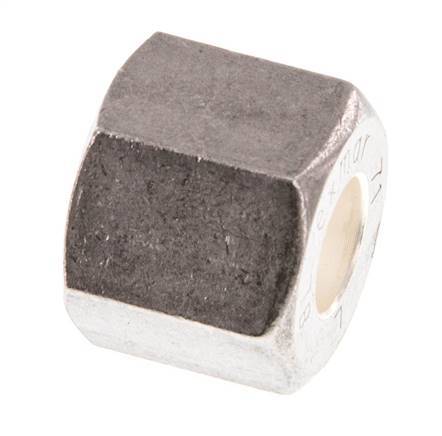

M14x1.5 x 8L Stainless steel Union nut for Compression ring
This stainless steel M14 x 1.5 union nut (female threads) is designed to be used with a cutting ring or a compression ring fitting. Suitable for pipes with an outer pipe diameter of 8 mm. In accordance to the DIN 2353, it has an L (light) load class.
- Regular price
- £4.76
Description
This union nut (female threads) is designed to be used with a cutting ring or a compression ring fitting. The nut has a M14 x 1.5 threads, making it suitable for an outer pipe diameter of 8 mm. To install, the union nut should be slid over the pipe first. Then, the pipe can be inserted into the cutting ring or a compression ring fitting before tightening the union nut. This will ensure a leak-free seal. Fitting is made out of stainless steel 316 ti (1.4571). It has an L (light) load class, in accordance with the DIN 2353. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353) and the DIN 3870 standards.
UNL series
The UNL series includes union nuts designed for compression and/or cutting ring fittings. With threads from M8 x 1 to M52 x 2, they are ideal for pipe diameters ranging from 4 to 42 mm. Made out of brass, steel, or stainless steel 316 Ti (1.4571) so there is always a material suitable for your application. DIN 2353 load classes range from LL (very light) to S (heavy).
