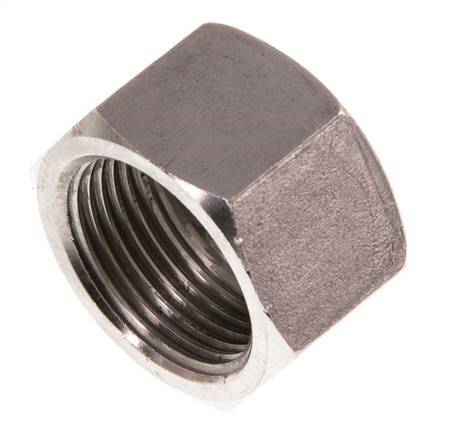

M22x1.5 x 15L Stainless steel Union nut for Cutting ring
This stainless steel M22 x 1.5 union nut (female threads) is designed to be used with a cutting ring fitting. Suitable for pipes with an outer pipe diameter of 15 mm. In accordance to the DIN 2353, it has an L (light) load class.
- Regular price
- £5.26
Description
This union nut (female threads) is designed to be used with a cutting ring fitting. The nut has a M22 x 1.5 threads, making it suitable for an outer pipe diameter of 15 mm. To install, the union nut should be slid over the pipe first. Then, the pipe can be inserted into the cutting ring fitting before tightening the union nut. This will ensure a leak-free seal. Fitting is made out of stainless steel 316 ti (1.4571). It has an L (light) load class, in accordance with the DIN 2353. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353) and the DIN 3870 standards.
UNL series
The UNL series includes union nuts designed for compression and/or cutting ring fittings. With threads from M8 x 1 to M52 x 2, they are ideal for pipe diameters ranging from 4 to 42 mm. Made out of brass, steel, or stainless steel 316 Ti (1.4571) so there is always a material suitable for your application. DIN 2353 load classes range from LL (very light) to S (heavy).
