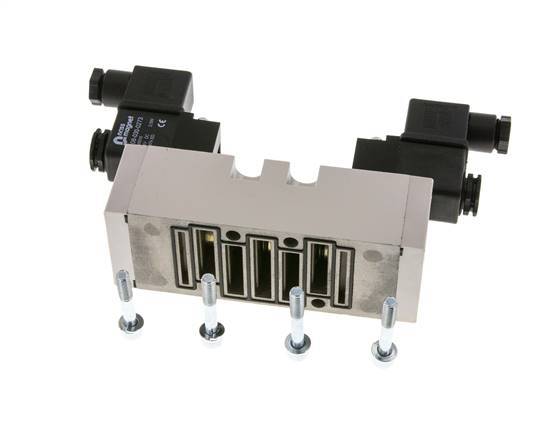

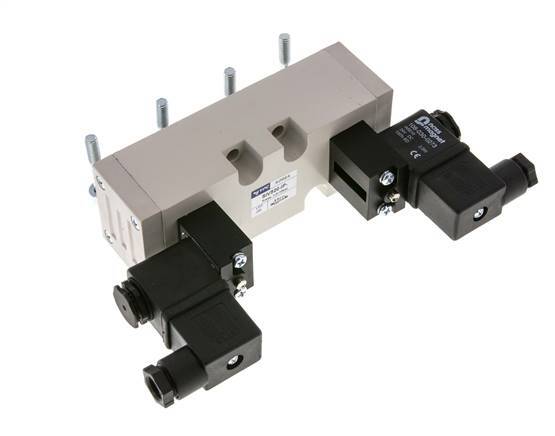

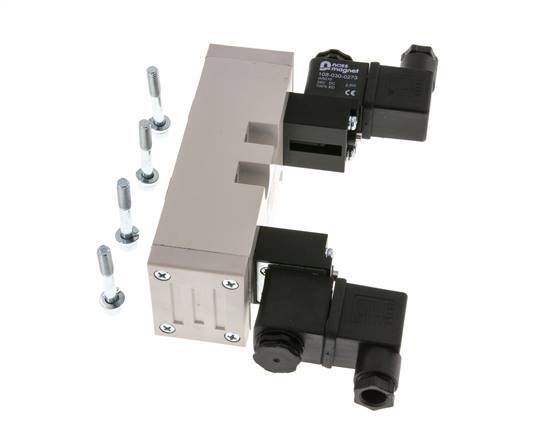

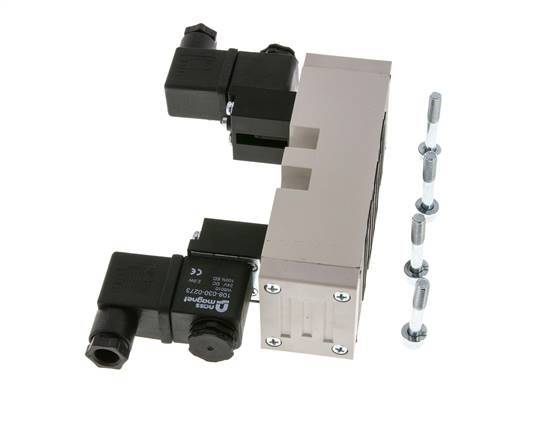

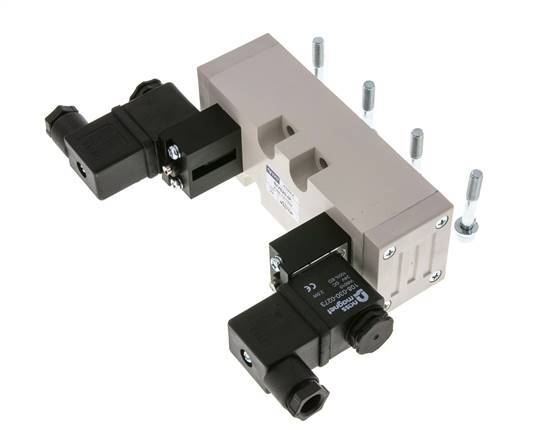

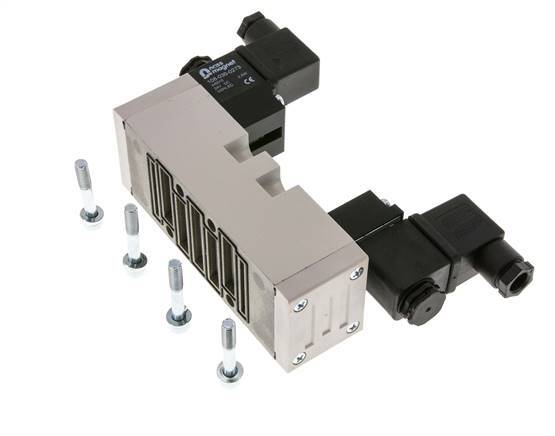

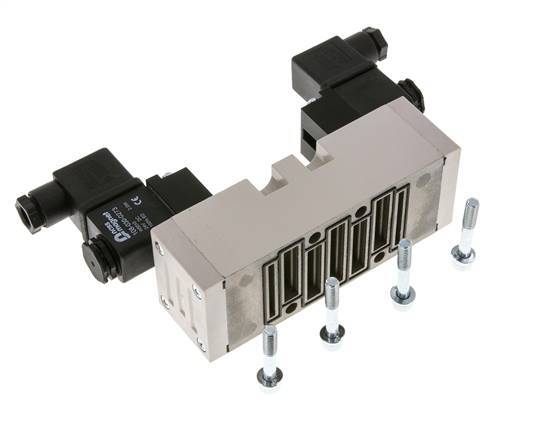

5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC

5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
5/2 ISO 5599-2 Bistable Solenoid Valve 12V DC 1.5-10bar/21.0-140psi YPC
Image may vary slightly
See specifications for accurate information.
Reference: V2PT7
Brand: YPC
Mfr. Part: SIV520-IPSC-D2

Use a 5/2-way valve in applications that move continuously between two positions, such as extending and retracting double-acting cylinders, where it is not necessary to stop air pressure.

Including coil and connector.

View all
£153.41
excl VAT
In stock +0 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 0 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £0.00
Expected delivery in 0 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Use a 5/2-way valve in applications that move continuously between two positions, such as extending and retracting double-acting cylinders, where it is not necessary to stop air pressure.

Downloads

Specifications

Function
Circuit function of the valve
Bistable
Voltage
Choose the voltage required to operate the valve. AC stands for alternating current, DC for direct current.
12 V DC
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
5/2 way
Max pressure (bar)
Maximum system pressure.
10
Min pressure difference (bar)
1.5
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
3.13
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
60
Electrical connection
DIN-BI (11mm)
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP65
Nominal power (VA)
2.1
ISO 5599 size
The standard size of ISO 5599-1 solenoid valves, such as size 1, size 2, and size 3.
2
Max flow rate (l/min)
3500
Response time (s)
0.035
Voltage-type
DC
Max pressure (bar)
10
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Electric
