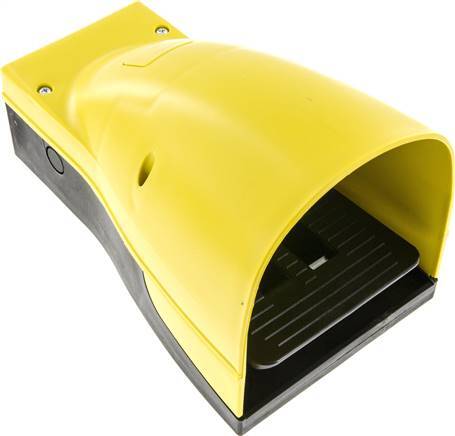

3/2 G1/8'' Universal Foot Pedal Valve 2.5-10bar/35.0-140psi

3/2 G1/8'' Universal Foot Pedal Valve 2.5-10bar/35.0-140psi
3/2 G1/8'' Universal Foot Pedal Valve 2.5-10bar/35.0-140psi
Image may vary slightly
See specifications for accurate information.
Reference: V2R8Q
Brand: Tameson

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position. With spring return actuators, the valves return to their original position as soon as the actuator is released. Pneumatic foot pedal valves are often used to operate pneumatic cylinders.

View all
£79.71
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 30 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position. With spring return actuators, the valves return to their original position as soon as the actuator is released. Pneumatic foot pedal valves are often used to operate pneumatic cylinders.

Downloads

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/8 inch
Connection type
Inner thread cylindrical BSPP-G
Function
Circuit function of the valve
Universal
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Min pressure difference (bar)
2.5
Max pressure (bar)
Maximum system pressure.
10
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
0.58
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
60
Max flow rate (l/min)
650
Actuator style
The style of the actuator for manually or mechanically actuated valves.
Foot pedal
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
3/2 way
Return actuation
The return actuation is how the valve goes back to its original position.
Spring return
Max pressure (bar)
10
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Manual
