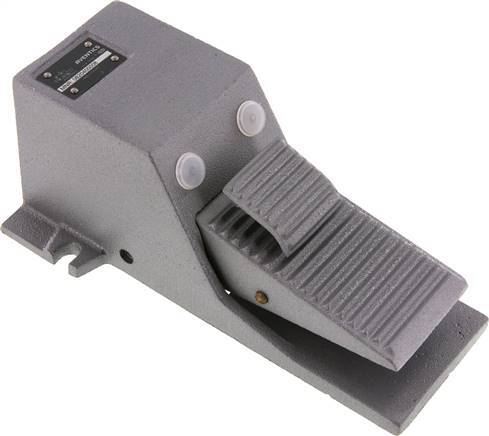

3/2 G1/4'' Foot Pedal Valve Detent Heavy Duty 0-10bar/0-140psi

3/2 G1/4'' Foot Pedal Valve Detent Heavy Duty 0-10bar/0-140psi
3/2 G1/4'' Foot Pedal Valve Detent Heavy Duty 0-10bar/0-140psi
Image may vary slightly
See specifications for accurate information.
Reference: V2RQR
Brand: Tameson

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position. Detents are used on pneumatic valves to hold the valve's spool at one of two selected positions. Pneumatic foot pedal valves are often used to operate pneumatic cylinders.

View all
£561.82
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position. Detents are used on pneumatic valves to hold the valve's spool at one of two selected positions. Pneumatic foot pedal valves are often used to operate pneumatic cylinders.

Downloads

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/4 inch
Connection type
Inner thread cylindrical BSPP-G
Function
Circuit function of the valve
Detent (No default position)
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Min pressure difference (bar)
0
Max pressure (bar)
Maximum system pressure.
10
Features
Heavy duty
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
0.54
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
60
Max flow rate (l/min)
600
Actuator style
The style of the actuator for manually or mechanically actuated valves.
Foot pedal
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
3/2 way
Max pressure (bar)
10
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Manual
