Image may vary slightly
See specifications for accurate information.
Reference: V2RX4
Brand: Tameson

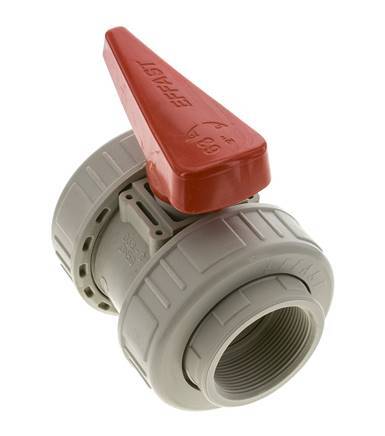

This Rp 2 inch 2-way ball valve is made of PP-H with an FKM seal. The nominal diameter of the valve is 50mm (DN 50). The maximum operating pressure is 10 bar (145 psi). The valve is suitable for operating temperatures between 0 and 100 °C (32 to 212 °F). The Kv-value is 192 m3/h (3200.64 l/min @1 bar pressure). In imperial units: Cv = 221.95 GPM @ 1 psi pressure. It has a lever for open/close control.

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

This Rp 2 inch 2-way ball valve is made of PP-H with an FKM seal. The nominal diameter of the valve is 50mm (DN 50). The maximum operating pressure is 10 bar (145 psi). The valve is suitable for operating temperatures between 0 and 100 °C (32 to 212 °F). The Kv-value is 192 m3/h (3200.64 l/min @1 bar pressure). In imperial units: Cv = 221.95 GPM @ 1 psi pressure. It has a lever for open/close control.

Pros:

  • Polypropylene provides superior chemical resistance and higher temperature resistance than PVC and is a more neutral plastic than PVC.
  • Polypropylene is lightweight, strong, and durable giving it a long service life.
  • Polypropylene ball valve is often a cost-effective alternative to a metal housing (brass or stainless steel).

Downloads

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
2 inch
Connection type
Inner thread cylindrical BSPT-Rp
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
FKM (FPM)
Max pressure difference at 20 °C (bar)
10
Operation
The way the valve works. For example via an electric actuator, a pinch wheel or a pneumatic actuator.
Handle
Recommended for
Water (up to 60°C), Water and steam
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
0
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
100
Valve bore (mm)
50
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
192
Material quality
The material quality provides more detailed information on the housing material. Choose a housing material that will not corrode from the media and environment.
PP-H
Housing construction
3-part
Model
Straight
Ball seal
Teflon (PTFE)
Article compression class
PN 10
With drain
No
With drain possibility (connection)
No
Medically clean
No
Full bore
Yes
