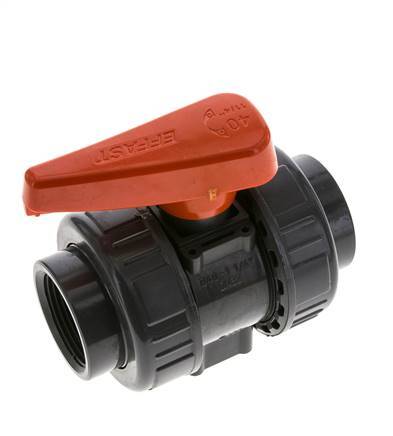

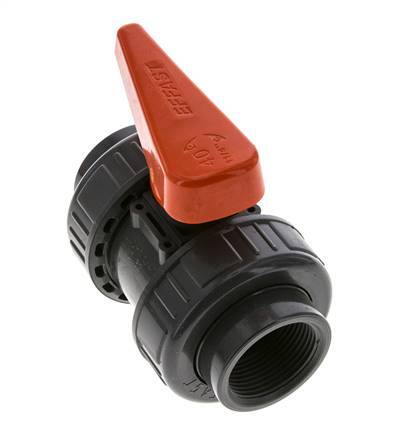

PVC 2-way Ball Valve True Union Rp 1 1/4'' FKM
This Rp 1 1/4 inch 2-way ball valve is made of PVC-U with an FKM seal. The nominal diameter of the valve is 32mm (DN 32). The maximum operating pressure is 16 bar (232 psi). The valve is suitable for operating temperatures between 0 and 60 °C (32 to 140 °F). The Kv-value is 60 m3/h (1000.2 l/min @1 bar pressure). In imperial units: Cv = 69.36 GPM @ 1 psi pressure. It has a lever for open/close control.
- Regular price
- £144.83
Description
This Rp 1 1/4 inch 2-way ball valve is made of PVC-U with an FKM seal. The nominal diameter of the valve is 32mm (DN 32). The maximum operating pressure is 16 bar (232 psi). The valve is suitable for operating temperatures between 0 and 60 °C (32 to 140 °F). The Kv-value is 60 m3/h (1000.2 l/min @1 bar pressure). In imperial units: Cv = 69.36 GPM @ 1 psi pressure. It has a lever for open/close control.
PVC ball valves are commonly used for water, but are also suited for many inorganic chemicals, acids, alkalis and salt solutions. They're not suited for aromatic and chlorinated hydrocarbons. In case of threaded connections, apply a sealant suitable for PVC, such as Loctite 5331, to the male threads.
These ball valves are made according to EN 1452-3.
Note: PTFE tape or PTFE sealants are not recommended for plastic-to-plastic connections. Do not use PVC pipes, valves, and fittings with compressed air or gas.
Pros:
- PVC is lightweight, strong, and durable giving it a long service life.
- PVC ball valve is often a cost-effective alternative to a metal housing (brass or stainless steel).
