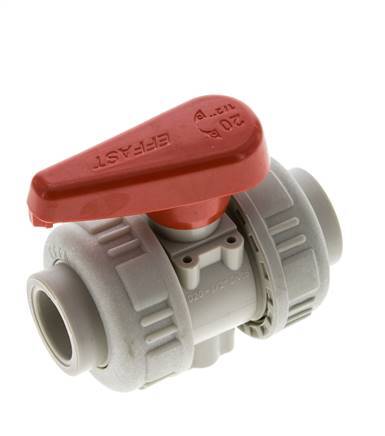

PP-H 2-way Ball Valve True Union 20 mm EPDM
This 20 mm 2-way ball valve is made of PP-H with an EPDM seal. The nominal diameter of the valve is 15mm (DN 15). The maximum operating pressure is 10 bar (145 psi). The valve is suitable for operating temperatures between 0 and 100 °C (32 to 212 °F). The Kv-value is 11.4 m3/h (190.04 l/min @1 bar pressure). In imperial units: Cv = 13.18 GPM @ 1 psi pressure. It has a lever for open/close control.
- Regular price
- £85.24
Description
This 20 mm 2-way ball valve is made of PP-H with an EPDM seal. The nominal diameter of the valve is 15mm (DN 15). The maximum operating pressure is 10 bar (145 psi). The valve is suitable for operating temperatures between 0 and 100 °C (32 to 212 °F). The Kv-value is 11.4 m3/h (190.04 l/min @1 bar pressure). In imperial units: Cv = 13.18 GPM @ 1 psi pressure. It has a lever for open/close control.
Pros:
- Polypropylene provides superior chemical resistance and higher temperature resistance than PVC and is a more neutral plastic than PVC.
- Polypropylene is lightweight, strong, and durable giving it a long service life.
- Polypropylene ball valve is often a cost-effective alternative to a metal housing (brass or stainless steel).
