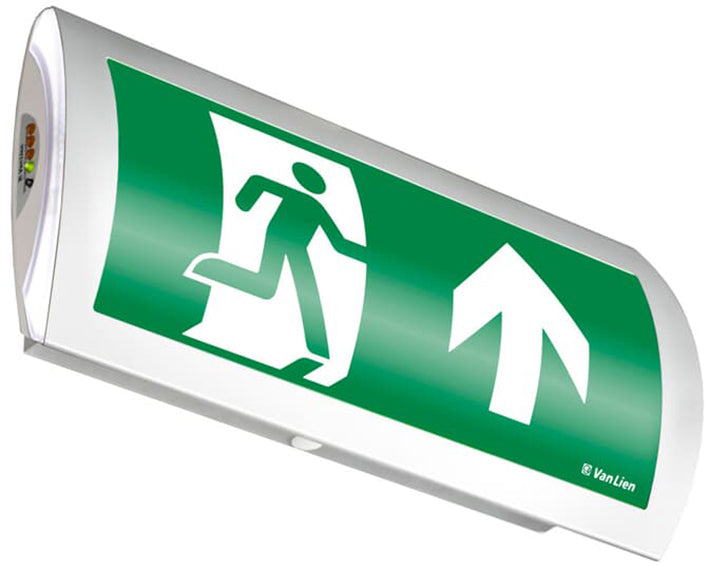

Van Lien Optilux Emergency Lighting Fixture - 7TCA091160R0001

Van Lien Optilux Emergency Lighting Fixture - 7TCA091160R0001
Van Lien Optilux Emergency Lighting Fixture - 7TCA091160R0001
Image may vary slightly
See specifications for accurate information.
Reference: E3D7S
Brand: Van Lien
Mfr. Part: 7TCA091160R0001

Van Lien Optilux OLN emergency lighting fixture, (lxw) 364x167mm, effective luminous flux according to IEC 59.5lm, luminous flux in standby mode 59.5lm, temperature 6350K, wall-mounted, power supply system decentralized (individual b, test fixture automatic, permanent operation yes (switchable), housing white.

View all
Note: product cannot be returned
£249.28
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 9 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Van Lien Optilux OLN emergency lighting fixture, (lxw) 364x167mm, effective luminous flux according to IEC 59.5lm, luminous flux in standby mode 59.5lm, temperature 6350K, wall-mounted, power supply system decentralized (individual b, test fixture automatic, permanent operation yes (switchable), housing white.

Downloads

Management, operation and maintenance document (EN)
pdf
Download
Other Documentation (EN)
pdf
Download

Specifications

Mounting method
Wall surface mounted
Function
Escape route signage
Suitable for labelling type
Insert sheet/plate
Type of indicator
Single-sided
With pictogram
No
Monitoring equipment
Automatic self test
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
With remote control
No
Power supply system
Peripheral (individual battery)
Battery quality
NiCd
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of lamps
2
Lamp holder
Other
Number of lighting heads
1
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Colour housing
White
Material cover
Plastic, transparent
Voltage-type
AC
Nominal voltage (V)
220 V to 230 V
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Yes
Light distributor
Refractor lens
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP40
Protection class
I
Rated ambient temperature according to IEC62722-2-1 (°C)
0 °C to 35 °C
Max. system power (W)
5.1
Rated luminous flux according to IEC 62722-2-1 (lm)
59.5
Colour temperature (K)
6350 K to 6350 K
Power factor
0.52
Recognition distance (m)
25
Nominal operation time (h)
3 h to 3 h
Width (mm)
The product's width without packaging.
167
Height/depth (mm)
82
Length (mm)
364
Outer-diameter (mm)
Outer diameter of the component.
0
Built-in width (mm)
0
Built-in height/depth (mm)
0
Built-in diameter (mm)
0
Type of wiring
Suitable for through wiring
Number of poles
6
Conductor cross section (mm²)
2.5
Connection type
Screw connection
